Wildland & Forestry
Fire Hose
Angus Super Inch /
Super Marshall
Rubber Covered
Through-The-Weave Fire Hose

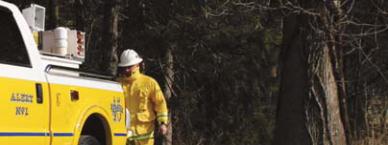

Nitrile rubber covered forestry hoses that require no
washing or drying and are mildew resistant. A protective
rubber covering resists burns and prevents damage of the
textile reinforcement which may be caused by abrasion or
hot embers. The standard color is high visibility yellow.
There is a minimum order quantity for 1-1/2" size.
Angus AF187
Polyester Single Jacket
Plastic Lined Fire Hose
A lightweight polyester jacket, polyurethane lined forestry
fire hose that meets the USDA-US Forest Service
Specification 5100-187. The standard color for Angus
AF187 is white.
Angus Super Inch / Super Marshall
Pressure Weight* Coil Diameter
Size Service Proof Burst Bowl Size 100' (30m) 100' (30m)
inch mm psi kPa psi kPa psi kPa inch mm lbs. kg inch mm
1 25 300 2100 600 4200 900 6300 1-1/4 31.8 10 4.5 16 406
1-1/2 38 300 2100 600 4200 900 6300 1-11/16 42.9 17 7.5 18 457
Angus AF187
Pressure Weight* Coil Diameter
Size Service Proof Burst Bowl Size 100' (30m) 100' (30m)
inch mm psi kPa psi kPa psi kPa inch mm lbs. kg inch mm
1 25 300 2100 600 4200 900 6300 1-1/4 31.8 7.5 3.4 14 356
1-1/2 38 300 2100 600 4200 900 6300 1-3/4 45 13.5 6.1 16 406
Flexible Pipeline
WAT-HOG
Plastic Lined Industrial Hose
Angus WAT-HOG is a premium lay-flat, flexible hose
designed to handle wastewater, sewer, treated, and
reclaimed water. It combines the features of PVC hose with
the durability and abrasion resistance of heavy rubber hose.
WAT-HOG features a through the weave construction
combining a woven textile with a polyurethane cover and
liner that will not delaminate. This hose is approved for
military fuel transfer, is resistant to fuels, chemicals, heat,
weather and UV light. Available in orange and tan.
A specialized polyurethane hose, extruded through the
weave cover and lining, reinforced with circular woven high
tenacity polyester. Super Aquaduct is the only product of
it's kind which is NSF 61 certified for potable water.

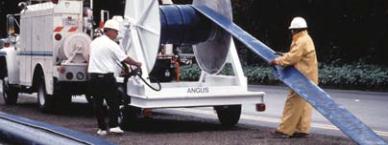

Designed for a variety of above ground high flow potable or
fire water contingencies. Also available are many
equipment options for fast and easy deployment and
retrieval of this versatile hose product. Available in blue and
orange.
Angus Super Aquaduct
Max Working Burst Weight*
Size Pressure** Pressure per foot
inch mm psi kPa psi kPa lbs. kg
6 152 300 2100 600 4200 1.09 0.5
8 203 220 1540 500 3500 1.9 0.9
10 254 175 1225 400 2800 2.2 1
12 305 175 1225 400 2800 3.5 1.6
Angus WAT-HOG
Max Working Burst Weight* Coil Diameter
Size Pressure** Pressure per foot 50' (15m)
inch mm psi kPa psi kPa lbs. kg inch mm
1-1/2 38 300 2100 600 4200 0.16 0.07 13.5 343
2-1/2 65 300 2100 600 4200 0.3 0.14 14 356
3 76 300 2100 600 4200 0.37 0.17 15 381
4 102 300 2100 600 4200 0.56 0.25 19.5 495
6 152 300 2100 600 4200 1.22 0.55 21 533
* Weight is uncoupled
** Or maximum working pressure of attached coupling, whichever is lower
Super Aquaduct
Lay Flat Large Diameter
