BECAUSE WE CONTINUALLY EXAMINE WAYS TO IMPROVE OUR PRODUCTS, WE RESERVE THE RIGHT TO ALTER SPECIFICATIONS WITHOUT PRIOR NOTICE.
KRHCA0109
Compressed Air
APPLICATION
High pressure air hose for heavy-duty use in mines, quarries,
construction and industry.
COVER
Yellow, SBR — abrasion and ozone resistant — pin pricked.
REINFORCEMENT
* High tensile steel cords - braided - 1/2" - 2"
High tensile spiral steel wire. - 21/2" - 4"
TUBE
Black SBR/NBR — resistant to oil mist.
TEMPERATURE RANGE
-22°F (-30°C) to 176°F (+80°C)
STANDARD LENGTH
50 or 100 feet
BRANDING
Alfagomma – T140 Steel Air (Black Letters)
Embossed – Alfagomma – Italy – T130 Steel Air

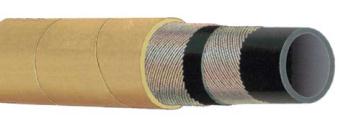

T130AK - T140AK* - Steel Wire Air Hose
COUPLING SUGGESTIONS
Steel or malleable iron male insert NPT, female ground joint or washer type with spud, or universal quick-acting couplings attached
with 2 or 4 bolt interlocking clamps or bands.
H Kuriyama offers a full line of ground joint couplings and clamps and universal air hose couplings and clamps. Refer to current
Kuriyama-Couplings™ and Accessories Catalog for type and pricing.
T140AK050 1/2 13 0.91 23 38 600 2 1/2
T140AK075 3/4 19 1.10 28 40 600 4
T140AK100 1 25 1.34 34 50 600 5
T140AK125 1 1/4 32 1.65 42 74 600 6 1/4
T140AK150 1 1/2 38 1.89 48 86 600 7 1/2
T140AK200 2 51 2.52 64 136 600 10
T130AK250 2 1/2 63 3.27 83 240 450 12 1/2
T130AK300 3 76 3.78 96 286 450 15
T130AK400 4 102 4.80 122 413 450 20
Nominal Specifcations
SERIES NO. NOMINAL ID NOMINAL OD APPROX. WT. MAX. REC. MIN. BEND
(in.) (mm) (in.) (mm) lbs./100 ft. WP (PSI) RADIUS (in.)
*
*
*
*
*
*
10
