HPlease note: Proper grounding of static wire will prolong tube life.

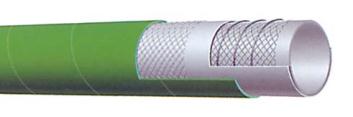

T720LG - Material Handling Hose - FDA Grade
COUPLING SUGGESTIONS
Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.
H Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current
Kuriyama-Couplings™ and Accessories Catalog for type and pricing.
APPLICATION
Suction or discharge of wet or dry abrasive materials. Designed
for grains, four and pellet transfer.
COVER
Green SBR/EPDM blend — abrasion and ozone resistant.
REINFORCEMENT
Spiralled high tensile textile cords, with 4 highly fexible steel
helix wires and static wire.
TUBE
3/16" white NR — abrasion resistant.
TEMPERATURE RANGE
-22°F (-30°C) to 176°F (+80°C)
STANDARD LENGTH
100 feet: 2" through 4"
20 feet: 5", 6" and 8"
50 feet: 4", 5" and 6"
WORKING PRESSURE
See chart below.
BRANDING
ALFAGOMMA – ITALY T720 – BULK FOOD & MATERIAL
– S & D (in white letters)
T720LG200 2 51 2.64 67 122 150 6
T720LG300 3 76 3.62 92 188 150 9
T720LG400 4 102 4.65 118 256 150 12
T720LG500 5 127 5.71 145 379 75 20
T720LG600 6 152 6.69 170 466 75 24
T720LG800 8 203 8.78 223 701 75 32
Nominal Specifcations
SERIES NO. NOMINAL ID NOMINAL OD APPROX. WT. MAX. REC. MIN. BEND
(in.) (mm) (in.) (mm) lbs./100 ft. WP (PSI) RADIUS (in.)
BECAUSE WE CONTINUALLY EXAMINE WAYS TO IMPROVE OUR PRODUCTS, WE RESERVE THE RIGHT TO ALTER SPECIFICATIONS WITHOUT PRIOR NOTICE.
KRHCA0109 47
