Petroleum

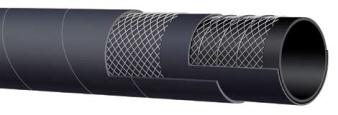

Flexor T604AA - SAE 100 R4 Oil Return Hose
APPLICATION
Low pressure return lines or suction lines with half the bend
radius requirements of SAE J517 100 R4, service with
petroleum based hydraulic fuids, water-glycol and water-fre
resistant hydraulic fuids, oil, lubricants, crude oil, fuel oils and
water.
COVER
Black CR - oil, fuel, weather, ozone and abrasion-resistant.
MSHA accepted cover available on request.
REINFORCEMENT
Textile reinforced with four spiral wire helix to prevent collapsing.
TUBE
Black, conductive NBR.
TEMPERATURE RANGE
-40° F (-40° C) to 212° F (+100° C) constant operation.
Maximum operating temperature: 257° F (+125° C).
Air maximum temperature: 175° F (80° C).
Note: Operating temperatures in excess of 212° F (+100° C)
may materially reduce the life of the hose.
STANDARD LENGTH
100 feet
BRANDING
ALFAGOMMA - Italy - T604 (PSI) - SAE 100 R4 - (SIZE) - Date
COUPLING SUGGESTIONS
Crimp-on permanent type or combination nipples with bands.
Note: Hose cover does not need to be removed before attaching couplings.
H
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current
Kuriyama-Couplings™ and Accessories Catalog for type and pricing.
T604AA075
3/4
19
1.14
29
41
300
2 1/4
T604AA100
1
25
1.38
35
50
250
3
T604AA125
1 1/4
32
1.65
42
61
200
3 3/4
T604AA150
1 1/2
38
1.89
48
69
150
4 1/2
T604AA200
2
51
2.40
61
89
100
6
Nominal Specifcations
SERIES NO.
NOMINAL ID
NOMINAL OD
APPROX. WT.
MAX. REC.
MIN. BEND
(in.)
(mm)
(in.)
(mm)
lbs./100 ft.
WP (PSI)
RADIUS (in.)
