BECAUSE WE CONTINUALLY EXAMINE WAYS TO IMPROVE OUR PRODUCTS, WE RESERVE THE RIGHT TO ALTER SPECIFICATIONS WITHOUT PRIOR NOTICE.
KRHCA0109
27
Food

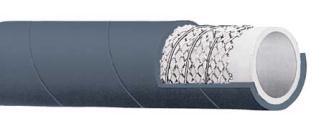

T405LB - 150 PSI Grey FoodTransfer Hose
COUPLING SUGGESTIONS
Quick-Acting or combination nipples attached with single bolt, double bolt, wire or band type clamps.
H
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current
Kuriyama-Couplings™ and Accessories Catalog for type and pricing.
APPLICATION
Liquid, fatty and oily food and alcoholic beverage suction and
delivery.
Hose may be sterilized with 30 PSI steam at 266°F for 30
minutes maximum – open end only.
Not recommended for dry abrasive materials.
COVER
Grey NBR/PVC – abrasion, ozone and oil resistant.
REINFORCEMENT
Spiralled high tensile textile cords, and
4
highly fexible steel
helix wires.
TUBE
White NBR. Meets FDA and 3A requirements.
TEMPERATURE RANGE
-22°F (-30°C) to 176°F (+80°C)
STANDARD LENGTH
100 feet
WORKING PRESSURE
Constant Pressure — 10 Bar (150 PSI)
BRANDING
ALFAGOMMA – ITALY T405 10 BAR (150 PSI) – GENERAL
PURPOSE FOOD QUALITY – S & D (black letters)
H
T405LB200
2
51
2.56
65
126
8
T405LB300
3
76
3.54
90
200
12
Nominal Specifcations
SERIES NO.
NOMINAL ID
NOMINAL OD
APPROX. WT.
MIN. BEND
(in.)
(mm)
(in.)
(mm)
lbs./100 ft.
RADIUS (in.)
CONSULT FOOD HOSE GUIDE FOR MATERIAL COMPATIBILITY ON PAGE 31
