BECAUSE WE CONTINUALLY EXAMINE WAYS TO IMPROVE OUR PRODUCTS, WE RESERVE THE RIGHT TO ALTER SPECIFICATIONS WITHOUT PRIOR NOTICE.
KRHCA0109
15
Water Discharge

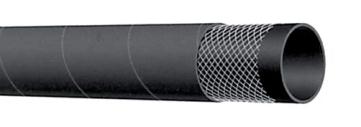

T253AA - 150 PSI EPDM LayfatWater
Discharge Hose
APPLICATION
High pressure, 150 PSI lay fat type hose for general industrial
construction and irrigation.
COVER
Black abrasion and ozone-resistant EPDM rubber.
REINFORCEMENT
High tensile textile cords.
TUBE
Black EPDM rubber.
TEMPERATURE RANGE
-22°F (-30°C) to 176°F (+80°C)
STANDARD LENGTH
100 feet: 1
1
/
2
" through 10"
50 feet: 6", 8" 10" & 12"
WORKING PRESSURE
150 PSI constant (10 Bar)
BRANDING
Alfagomma – Italy – T253 10 Bar (150 PSI) EPDM
WATER DISCHARGE (in green letters)
*
6
5
/
8
" referred to as Elephant Trunk Hose — Ideal for “Irrigation Boots”
COUPLING SUGGESTIONS
Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.
H
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current
Kuriyama-Couplings™ and Accessories Catalog for type and pricing.
T253AA150
1 1/2
38
1.81
46
36
150
T253AA200
2
51
2.32
59
49
150
T253AA250
2 1/2
63
2.80
71
60
150
T253AA300
3
76
3.31
84
86
150
T253AA400
4
102
4.33
110
119
150
T253AA600
6
152
6.38
162
200
150
T253AA662
6 5/8
168
7.01
178
217
150
T253AA800
8
203
8.46
215
288
150
T253AA1000
10
254
10.63
270
512
150
T253AA1200
12
305
12.56
319
534
150
Nominal Specifcations
SERIES NO.
NOMINAL ID
NOMINAL OD
APPROX. WT.
MAX. REC.
(in.)
(mm)
(in.)
(mm)
lbs./100 ft.
WP (PSI)
*
• NOT FOR CHEMICAL APPLICATIONS
10
FOR APPLICATIONS INVOLVING INDUSTRIAL ACID CHEMICALS
AND ALCOHOLS, PLEASE REFER TO T505OG AND T509OE
CHEMICAL HOSES
