BECAUSE WE CONTINUALLY EXAMINE WAYS TO IMPROVE OUR PRODUCTS, WE RESERVE THE RIGHT TO ALTER SPECIFICATIONS WITHOUT PRIOR NOTICE.
KRHCA0109 13
Water Suction
APPLICATION
Suction and delivery of non-corrosive liquids for irrigation,
construction, fertilizers and lasso acid solutions.
COVER
Black weather and ozone-resistant EPDM rubber.
REINFORCEMENT
Spiralled high tensile textile cords and 4 highly fexible steel
helix wires.
TUBE
Black EPDM rubber.
TEMPERATURE RANGE
-22°F (-30°C) to 176°F (+80°C)
STANDARD LENGTH
100 feet: 1" through 6" 20, 50 feet: 5"
20, 25, 50 feet: 6" 20, 25 feet: 8"
BRANDING
Alfagomma – Italy – T202 10 BAR (150 PSI) GENERAL
PURPOSE EPDM (in green letters)

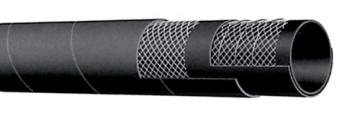

T202AA - 150 PSI EPDM Multi-Purpose
Water Suction Hose
COUPLING SUGGESTIONS
Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.
H Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current
Kuriyama-Couplings™ and Accessories Catalog for type and pricing.
T202AA100 1 25 1.38 35 46 150 4
T202AA125 1 1/4 32 1.65 42 54 150 5
T202AA150 1 1/2 38 1.89 48 63 150 6
T202AA200 2 51 2.40 61 82 150 8
T202AA250 2 1/2 63 2.95 75 118 150 10
T202AA300 3 76 3.46 88 141 150 12
T202AA350 3 1/2 90 4.02 102 177 150 14
T202AA400 4 102 4.49 114 198 150 16
T202AA500 5 127 5.55 141 314 150 25
T202AA600 6 152 6.54 166 392 150 30
T202AA800 8 203 8.70 221 659 150 40
Nominal Specifcations
SERIES NO. NOMINAL ID NOMINAL OD APPROX. WT. MAX. REC. MIN. BEND
(in.) (mm) (in.) (mm) lbs./100 ft. WP (PSI) RADIUS (in.)
FOR APPLICATIONS INVOLVING INDUSTRIAL ACID CHEMICALS
AND ALCOHOLS, PLEASE REFER TO T505OG AND T509OE
CHEMICAL HOSES
