BECAUSE WE CONTINUALLY EXAMINE WAYS TO IMPROVE OUR PRODUCTS, WE RESERVE THE RIGHT TO ALTER SPECIFICATIONS WITHOUT PRIOR NOTICE.
KRHCA0109 11
Compressed Air
APPLICATION
High quality air hose for mining and construction service.
COVER
Yellow, abrasion and ozone-resistant SBR rubber.
REINFORCEMENT
Spiralled, high tensile textile cords.
TUBE
Black Chlorobutyl.
TEMPERATURE RANGE
-22°F (-30°C) to 200°F (+93°C)
STANDARD LENGTH
100 feet
BRANDING
ALFAGOMMA – ITALY – T164 20 BAR (300 PSI) HIGH TEMP
AIR (in blue letters)
COUPLING SUGGESTIONS
Steel or malleable iron male insert NPT, female ground joint or washer type with spud, attached with 2 or 4 bolt interlocking clamps.
H Kuriyama offers a full line of ground joint couplings and clamps and universal air hose couplings and clamps. Refer to current
Kuriyama-Couplings™ and Accessories Catalog for type and pricing.

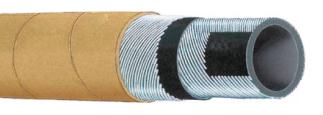

T164AK 300 PSI - HighTempTextile Cord
“Air Drill” Hose
T164AK200 2 51 2.64 67 101 300
Nominal Specifcations
SERIES NO. NOMINAL ID NOMINAL OD APPROX. WT. MAX. REC.
(in.) (mm) (in.) (mm) lbs./100 ft. WP (PSI)
