DPL410
877.963.4966 • www.dixonvalve.com
V
Size F to F A B
Override
Stainless Steel
Part #
110VAC
Voltage
-EA
24VDC
Voltage
-EG
12VDC
Voltage
-ET
220VAC
Voltage
-EK
24VAC
Voltage
-ES
½"
¾"
1"
1¼"
1½"
2"
3"
2.6
3.0
3.4
4.0
4.7
5.2
7.2
7.8
8.0
8.3
8.5
9.2
11.4
12.2
4.5
4.5
4.5
4.5
4.5
4.5
6.1
standard
standard
standard
standard
standard
N/A
N/A
BV2IG-05011
BV2IG-07511
BV2IG-10011
BV2IG-12511
BV2IG-15011
BV2IG-20011
BV2IG-30011
$903.55
928.55
950.20
1008.90
1044.80
1398.30
2568.20
$903.55
928.55
950.20
1008.90
1044.80
1398.30
2568.20
$903.55
928.55
950.20
1008.90
1044.80
1398.30
2568.20
$903.55
928.55
950.20
1008.90
1044.80
1398.30
2568.20
$903.55
928.55
950.20
1008.90
1044.80
1398.30
2568.20
Dimensions are approximate.
Engineering dimensions are available upon request. Specifications are subject to change without notice.

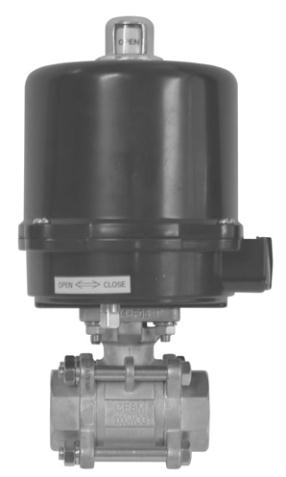

3-Piece Stainless Ball Valve
•
blow-out proof stainless steel stem
•
CF8M body and ball
•
15% glass reinforced RTFE seats
•
½" - 2" rated to
1000 PSI
WOG; 3" rated to
800 PSI
WOG
•
temperature range:
-40°F
to
400°F
•
ISO 5211 mounting pad
•
swing out in-line easy maintenance
•
spring loaded stem packing
Electric Actuator
•
lightweight powder coated aluminum alloy housing
•
NEMA 4/4X waterproof and dustproof
•
H-insulation class
•
manual over-ride standard: ½" - 1½"
•
extended duty cycle induction motor
•
high alloy steel gear train
•
working temperature:
-41°F
to
140°F
•
ISO 9001, CS, CE and CSA-C US Certified
•
space heater is standard
•
visual position indication
•
RoHS compliant
Caution !
Even though there are torque safety factors built into our automated ball valve packages, actual service conditions
must also be considered when selecting the proper product for the appropriate application.
For example:
Severe service conditions such as dirty water, dirty air, all slurries, raw sewage water, oils, and other viscous fluids can have a
dramatic affect in raising the torque requirements of ball valves as much as 75% and therefore larger actuators may be required.
Please consult the factory when dealing with these types of applications.
A wide variety of options are available: modulating, extra switches, transmitters, potentiometer, etc.
Contact the factory at 800.789.1718 or visit bradfordfittings.com for details.
BØ
A
F to F
BØ
A
F to F
BØ
A
F to F
½" - 1½"
3"
2"
