Spring Return (normally closed)
Double Acting
Size A B C D
Stainless Steel
Part #
Price/E
1/4"
3/8"
1/2"
3/4"
1"
1¼"
1½"
2"
2½"
3"
5.21
5.21
5.16
5.26
6.64
6.84
8.14
8.69
9.54
11.39
2.80
2.80
2.80
2.80
3.74
3.74
4.69
4.69
5.53
7.29
2.56
2.56
2.95
3.15
3.54
4.33
4.72
5.51
7.28
8.07
5.49
5.49
5.49
5.49
8.09
8.09
9.84
9.84
13.98
16.61
BV2HG-02511-BBC
BV2HG-03811-BBC
BV2HG-05011-BBC
BV2HG-07511-BBC
BV2HG-10011-BBC
BV2HG-12511-BBC
BV2HG-15011-BBC
BV2HG-20011-BBC
BV2HG-25011-BBC
BV2HG-30011-BBC
$550.10
550.10
555.90
578.30
593.60
636.10
785.55
1194.85
1444.70
2983.75
Dimensions are approximate. Engineering dimensions are available upon
request. Specifications are subject to change without notice.

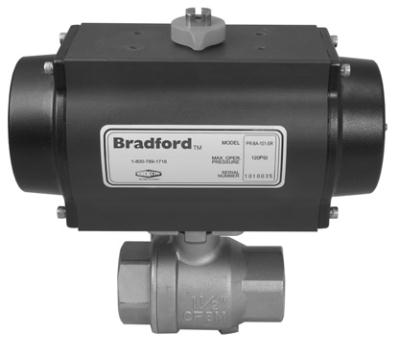

2-Piece Stainless Ball Valve
•
CF8M stem and ball
•
RTFE seats and seals
•
pressure rating:
1000 PSI
WOG
•
temperature range:
-40°F
to
450°F
•
ISO 5211 mounting pad
•
blow-out proof stem
•
spring loaded stem packing
Rack and Pinion Actuator
•
bi-directional stops for ±5º travel adjustment
•
80 PSI plant air required
•
maximum operating pressure:
120 PSI
•
operating temperature range:
-40ºF
to
200ºF
•
hard anodized aluminum body
•
NAMUR mounting
•
nickel plated anti-blowout pinion
•
Buna-N O-rings
•
visual position indication
•
tested to one million cycles
Size A B C D
Stainless Steel
Part #
Price/E
1/4"
3/8"
1/2"
3/4"
1"
1¼"
1½"
2"
2½"
3"
4.25
4.25
4.20
4.30
5.89
6.09
7.24
7.79
8.75
10.01
1.77
1.77
1.77
1.77
3.20
3.20
3.74
3.74
4.69
5.53
2.56
2.56
2.95
3.15
3.54
4.33
4.72
5.51
7.28
8.07
4.33
4.33
4.33
4.33
5.68
5.68
5.87
5.87
7.20
10.22
BV2HG-02511-BCC
BV2HG-03811-BCC
BV2HG-05011-BCC
BV2HG-07511-BCC
BV2HG-10011-BCC
BV2HG-12511-BCC
BV2HG-15011-BCC
BV2HG-20011-BCC
BV2HG-25011-BCC
BV2HG-30011-BCC
$350.60
350.60
414.20
378.80
501.35
543.90
671.05
1077.35
1320.60
2542.40
Dimensions are approximate. Engineering dimensions are available upon
request. Specifications are subject to change without notice.
Caution !
Even though there are torque safety factors built into our automated ball valve packages, actual service conditions
must also be considered when selecting the proper product for the appropriate application.
For example:
Severe service conditions such as dirty water, dirty air, all slurries, raw sewage water, oils, and other viscous fluids can have a
dramatic affect in raising the torque requirements of ball valves as much as 75% and therefore larger actuators may be required.
Please consult the factory when dealing with these types of applications.
A wide variety of switches, solenoids, positioners, etc., are available.
Contact the factory at 800.789.1718 or visit bradfordfittings.com for details.
