Filters / Strainers
P
Filters &
Strainers
Filters / Strainers

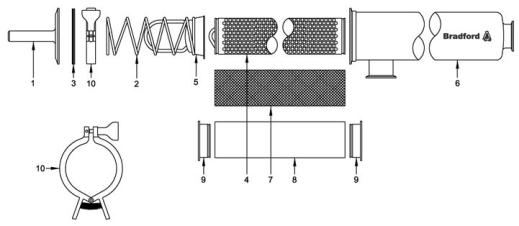

Bill of Materials
Item
#
Description
1½" and 2" Part #
3" Part #
Material
Qty
1
end cap with handle
BS-31-R100-200
BS-31-R250-300
316L stainless steel
1
2
strainer spring
BS-32-R100-200
BS-32-R250-300
316L stainless steel
1
3
clamp gasket
40MP-U400
40MPV-U400
Buna
1
4
back-up tube with 1/8" perforations
BS-1418-R100-200
BS-2418-R100-200
316L stainless steel
1
back-up tube with 1/4" perforations
BS-1425-R100-200
BS-2425-R100-200
5
distributor cap
BS-35-R100-200
BS-35-R250-300
316L stainless steel
1
6
1½" strainer body
BS-36-R150
---
316L stainless steel
1
2" strainer body
BS-36-R200
---
3" strainer body
---
BS-36-R300
7
various mesh over screens
part number on page 114
316 stainless steel
1
8
various flter bag
part number on page 114
various
1
9
retaining ring used with flter bags
BS-09-U100-200
BS-09-U250300
Buna
2
10
squeeze clamp for assembly
13MHHM-Q400
13MHHV-Q400
CF8
1
