112 Dixon Sanitary 2010 800.789.1718
Filters / Strainers
P
Filters &
Strainers
Filters / Strainers

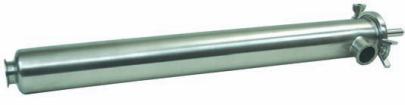

Side-Entry Filter / Strainer - BSCCQ
Size A B C D Part Number
1½" 41.9 4 35 3½ BSCCQ3-R150
2" 41.9 4 35 3½ BSCCQ3-R200
3" 41.9 4½ 35 3¾ BSCCQ3-R300
• Side entry units ship standard with the following: spring, end cap with handle, distributor cap,
clamp gasket, 1/4" perforated back-up tube, body and squeeze clamp
•1/8" perforated back-up tube available, must specify when ordering
•Bevel seat, I-line and weld ends available, call Dixon Sanitary for information
Dimensions are approximate. Engineering dimensions are available upon request.
Specifcations are subject to change without notice.
D
A
C
B
