BECAUSE WE CONTINUALLY EXAMINE WAYS TO IMPROVE OUR PRODUCTS, WE RESERVE THE RIGHT TO ALTER SPECIFICATIONS WITHOUT PRIOR NOTICE.
KRHCA0109
Compressed Air

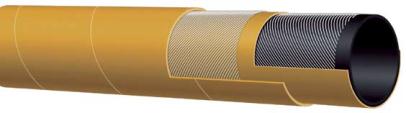

T155AK - 300 PSI Textile Cord
“Air Drill” Hose
APPLICATION
High quality air hose for mining and construction service.
COVER
Yellow, abrasion and ozone-resistant SBR rubber.
REINFORCEMENT
Spiralled, high tensile textile cords.
TUBE
Black SBR/NBR blend — oil mist resistant.
TEMPERATURE RANGE
-22°F (-30°C) to 176°F (+80°C)
STANDARD LENGTH
100 feet: 1/2" through 4"
50 feet: 1/2", 1" and 2" through 4"
BRANDING
ALFAGOMMA – ITALY – T155 20 BAR (300 PSI) AIR (in blue
letters)
COUPLING SUGGESTIONS
Steel or malleable iron male insert NPT, female ground joint or washer type with spud, attached with 2 or 4 bolt interlocking clamps
or bands. Universal couplings may be used on sizes (
1
/
2
" – 2")
H
Kuriyama offers a full line of ground joint couplings and clamps and universal air hose couplings and clamps. Refer to current
Kuriyama-Couplings™ and Accessories Catalog for type and pricing.
T155AK050
1/2
13
0.83
21
21.5
300
T155AK075
3/4
19
1.14
29
38
300
T155AK100
1
25
1.38
35
47
300
T155AK125
1 1/4
32
1.73
44
73
300
T155AK150
1 1/2
38
1.97
50
85
300
T155AK200
2
51
2.56
65
112
300
T155AK250
2 1/2
63
3.11
79
155
300
T155AK300
3
76
3.62
92
189
300
T155AK400
4
102
4.65
118
247
300
Nominal Specifcations
SERIES NO.
NOMINAL ID
NOMINAL OD
APPROX. WT.
MAX. REC.
(in.)
(mm)
(in.)
(mm)
lbs./100 ft.
WP (PSI)
