KRHCA0109 53
Material Handling
APPLICATION
Discharge of dry powders under low pressure. Pneumatic
transfer of dry materials and abrasive slurries.
COVER
Black conductive SBR/NR blend — abrasion and ozone
resistant.
REINFORCEMENT
Spiralled high tensile textile cords.
TUBE
1/4" thick black static conducting natural rubber, compounded to
resist cutting by abrasive materials.
TEMPERATURE RANGE
-22°F (-30°C) to 176°F (+80°C)
STANDARD LENGTH
100 feet
WORKING PRESSURE
Constant Pressure — 5 Bar (75 PSI)
BRANDING
ALFAGOMMA – ITALY T763 5 BAR (75 PSI)
BULK MATERIAL DELIVERY (in green letters)

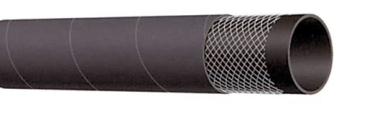

T763AA - 75 PSI HeavyWeight Dry Powder
Delivery Hose
COUPLING SUGGESTIONS
Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.
H Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current
Kuriyama-Couplings™ and Accessories Catalog for type and pricing.
T763AA400 4 102 4.72 120 215
T763AA500 5 127 5.71 145 263
Nominal Specifcations
SERIES NO. NOMINAL ID NOMINAL OD APPROX. WT.
(in.) (mm) (in.) (mm) lbs./100 ft.
HExcessive bending during operation may cause premature wear.
