BECAUSE WE CONTINUALLY EXAMINE WAYS TO IMPROVE OUR PRODUCTS, WE RESERVE THE RIGHT TO ALTER SPECIFICATIONS WITHOUT PRIOR NOTICE.
KRHCA0109
17
Water Discharge

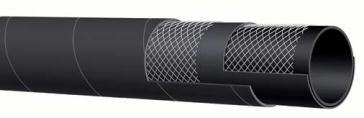

T155AA - High PressureWater Discharge Hose
APPLICATION
Heavy duty water discharge hose where tougher operating
conditions exist and high pressures are needed.
COVER
Black abrasion and ozone-resistant SBR rubber.
REINFORCEMENT
High tensile textile cords.
TUBE
Black SBR/NBR blend
TEMPERATURE RANGE
-22°F (-30°C) to 176°F (+80°C)
STANDARD LENGTH
100 feet: 1
1
/
2
" through 6"
50 feet: 6"
COUPLING SUGGESTIONS
Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.
H
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current
Kuriyama-Couplings™ and Accessories Catalog for type and pricing.
T155AA150
1 1/2
38
1.97
50
83
300
T155AA200
2
51
2.56
65
110
300
T155AA250
2 1/2
63
3.11
79
151
300
T155AA300
3
76
3.62
92
185
300
T155AA400
4
102
4.65
118
242
300
T155AA600
6
152
6.69
170
410
300
Nominal Specifcations
SERIES NO.
NOMINAL ID
NOMINAL OD
APPROX. WT.
MAX. REC.
(in.)
(mm)
(in.)
(mm)
lbs./100 ft.
WP (PSI)
