Elastomer:
Platinum cured silicone produced in accordance with:
•
US FDA (Foods and Drugs Administration) Standard 21 CFR
177.2600
•
German BfR Standard part XV
•
1935/2004/EC Regulation and European Council Resolution
AP 2004 (5) – silicones
•
USP Class VI standard
•
ISO 10993-6, 10993-10, 10993-11
•
3A Sanitary Standard 18-03 Class I (hose)
•
3A Sanitary Standard 62-02 (fitted hoses)
Fabric reinforcement:
Polyester fabric reinforcements.
Stainless steel inside:
Stainless steel wire spring encased inside the
hose wall.
Inner appearance:
Translucent and smooth.
Outer appearance:
Translucent, white or colored, and smooth.
Length of manufacture:
The standard length of manufacture is 4m
(13’). Upon request, 6m length hoses (19’ 8”) can be manufactured.
Temperature scale: -60º C / +180º C (-76º F / +356º F).
Applications
Broad application field due to the balance between strength and fle-
xibility, with a small bending radius.
Ideal for use in proportioning and loading tanks in any length. These
hoses compensate vibrations and level differences. Suitable for pres-
sure or vacuum.

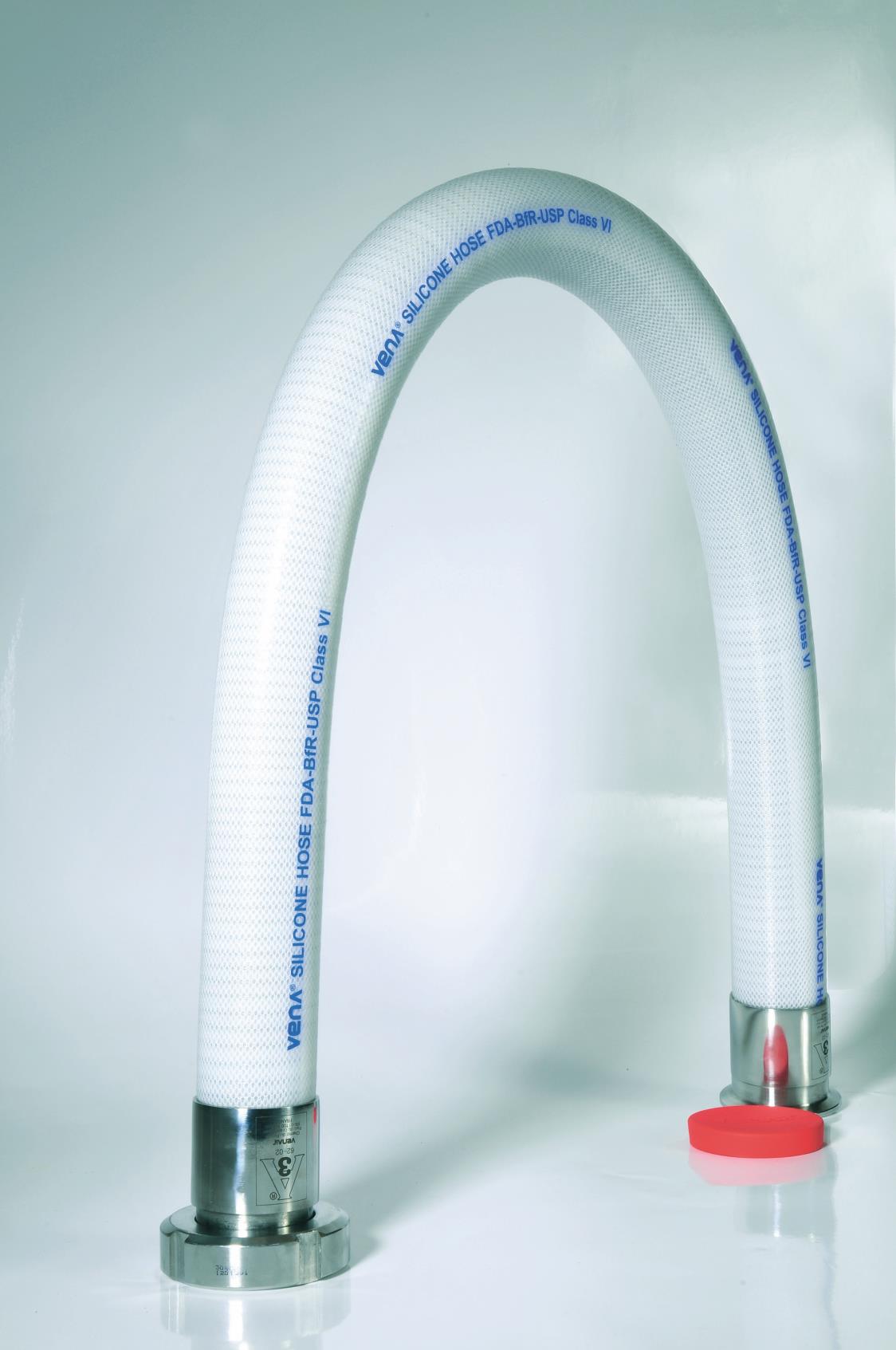

VENA SIL
650V
Inner Diameter*
Wall thickness
Theoretical Outer
Diameter
Bending Radius
Working Pressure **
Bursting Pressure **
Vacuum Resistance
ISO 1746/2000
ISO 1402/2009
ISO 1402/2009
(mm)
(inch)
+1 -0,5 (mm)
(mm)
(inch)
(mm)
(bar at 20ºC) (psi at 68ºF) (bar at 20ºC)
(psi at 68ºF)
6
1/4
17,0
0,67
29
26,0
377
77,9
1130
8
5/16
19,0
0,75
31
24,0
348
72,0
1044
684 Torr (MMhG)
10
3/8
21,0
0,83
34
22,0
318
65,9
955
13
1/2
24,0
0,94
39
19,9
289
59,7
866
0,91 bar
16
5/8
27,0
1,06
45
18,3
265
54,8
795
19
3/4
30,0
1,18
54
16,5
240
49,6
719
0,90 atm
22
7/8
5.5
33,0
1,30
60
15,8
229
47,3
686
25
1
36,0
1,42
68
14,08
214
44,3
643
9,29 mH20
32
1 1/4
43,0
1,69
94
12,8
186
38,5
558
38
1 1/2
49,0
1,93
112
11,5
167
34,5
500
13,23 psi
51
2
62,0
2,44
144
9,2
133
27,5
399
63
2 1/2
74,0
2,91
181
7,5
109
22,6
327
26,93 inHg
76
3
6
88,0
3,46
232
6,1
88
18,2
263
102
4
6
114,0
4,49
367
3,7
54
11,2
163
* Other diameters can also be manufactured. Please consult.
