Page 18 - Call 866-711-4673 GoodYear Rubber Products

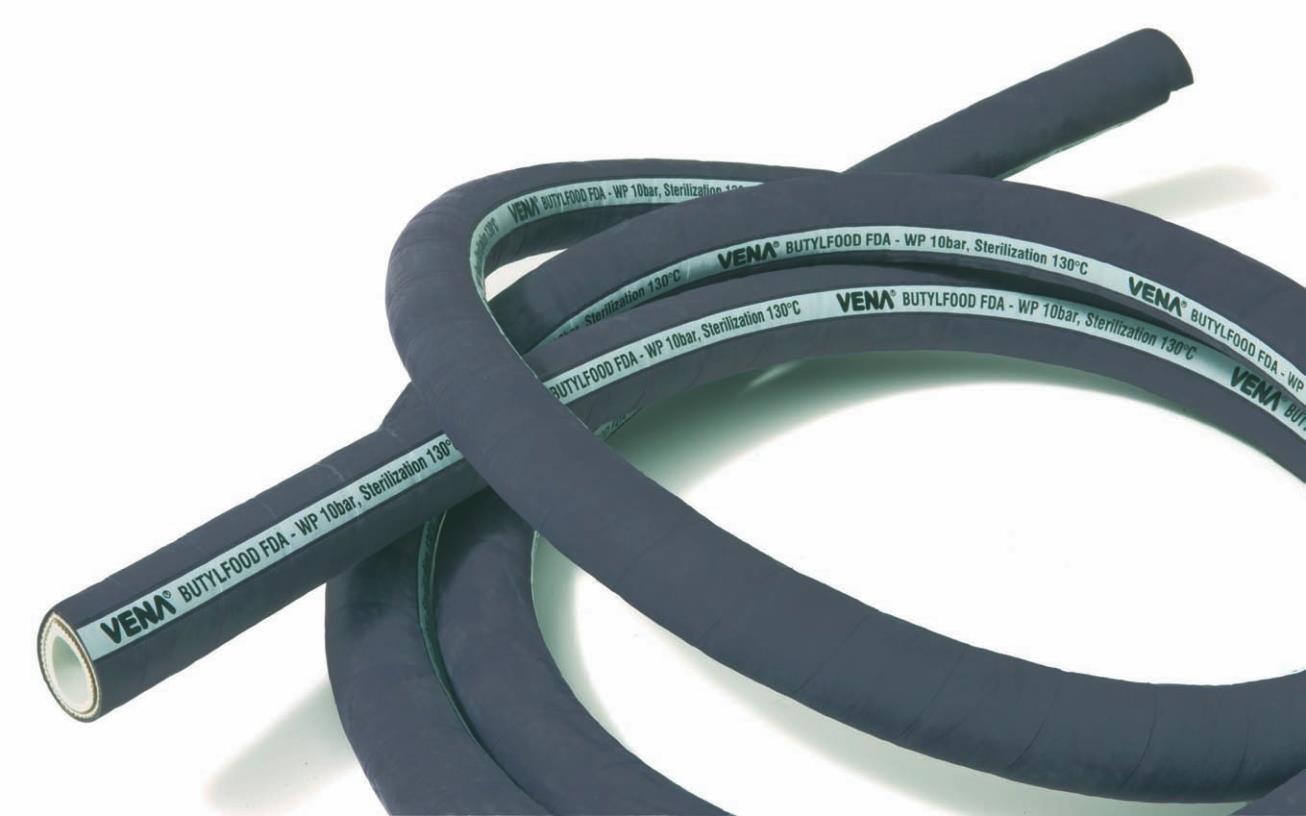

VENA BUTYLFOOD
VENA SIL KITCHEN
Characteristics
• Rubber hoses manufactured with food grade Butyl in accordance with
FDA 1 CFR 177.2600.
• Equipped with textile reinforcements inside the wall of the hose, with
double steel spring wire and copper braiding to ensure an equipotent
joint with the metal fittings and to protect from discharges of static elec-
tricity.
• Hoses with strong, durable construction that can withstand excessive
physical handling.
• Operable with pressure or vacuum.
Inner appearance: White, smooth
Outer appearance: Violet, smooth. Includes white information strip.
Operating pressure: 10 bar / 145 psi (all diameters)
Bursting pressure: 30 bar / 435 psi (all diameters)
Maximum operating temperature: -30ºC to +120ºC (-22ºF to +248ºF)
Sterilization temperature: 130ºC (266ºF). Can be sterilized on-site by major
Cleaning in Place (CIP) products.
Maximum manufacturing length: 40 meters (131ft)
Applications: The Butylfood flexible hose is recommended for all types of food
products, even at high temperatures (milk, chocolate, drinking water, fruit juice,
fresh cream, oil, cosmetic cream, alcohol, etc.)
Inner Diameter Outer Diameter Bending
Radius Working Pressure Working Pressure
(mm) (inch) (mm) (inch) (mm) Bar at
20ºC
Psi at
68ºF
Bar at
20ºC Psi at 68ºF
15,8 5/8 26 1 40
19,05 3/4 29 1 1/8 45
25,4 1 37 1 7/6 50
31,7 1 1/4 45 1 3/4 60
38,1 1 1/2 51 2 65 10 145 30 435
50,8 2 65 2 9/16 85
63,5 2 1/2 78 3 1/6 130
76,2 3 92 3 5/8 220
101,6 4 120 4 3/4 320
Elastomer: Extruded silicone produced in accordance with the US FDA
Standard 21 CFR 177.2600, the German BfR Standard part XV.
Fabric reinforcement: Polyester braiding. No stainless steel inside.
Inner appearance: Translucent and smooth. Outer appearance: Grey with yellow strip.
Temperature scale: -60ºC / +180ºC (-76ºF / +392ºF)
Working pressure: 6 bar (87 psi)
Available diameters: 12, 15, 19mm (1/2’’, 5/8’’, 3/4’’).
Available lengths: 5, 10, 20, 76m (15’, 33’, 60’, 250’)
Applications: Hi-Tech silicone recommended for industrial kitchens and catering.
Product chemically resistant. Long life product, can be exposed indefinitely to sunlight
and bad weather without drying or hardening, staying always flexible.
Sil Kitchen can be supplied with brass fittings suitable for many standard needs.
16
