ADAPTSIL
We recommend ADAPTSIL® adaptors to con-
vey fluids in the Food, Pharm and Biotech
industries.
These adaptors are FDA approved, made out of
USP class VI/platinum cured silicone and meet
all the certifications required in these industries.
The fittings are made of 316 L Stainless Steel
and crimped according to SZR® (non retention
zone system). The standard fittings are SMS,
DIN and sanitary TRI-CLAMP but others are
available upon request.
The hoses offer 7 different standard geometrical
configurations but we can customly make any
piece according to the customer’s needs. The-
se products can be vulcanized, sterilized and
Cleaned in Place (CIP) with steam or any other
common product (caustic soda, 4% diluted acid,
etc.)
We recommend ADAPTSIL® to:
• Compensate system vibrations as well
as to optimize the overall life of the hose
or tube connections.
• Solve handling system miss-alignments
as well as increased ease in hose or tube
installation.
• Offer sound dampening characteristics
in your process systems due to its elastic
and flexible construction.
*This product is also available with an inner layer of
FKM

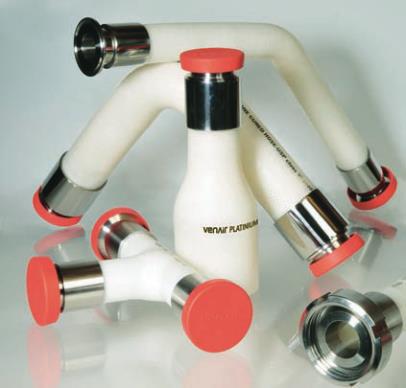

The first line of flexible adaptors
in silicone designed for the Food,
Pharmand Biotech industries.
CROSS-SHAPE CL/CL 45º ELBOW CL/CL
90º ELBOW CL/CL 90º ELBOW REDUCER CL/CL
mm L1 L
Ø3/8’’ 10 4 1/2 115 9 7/8 252
Ø1/2’’ 13 4 1/2 115 10 255
Ø1’’ 25 4 3/4 120 10 7/8 277
Ø1 1/4’’ 32 4 3/4 120 11 1/8 284
Ø1 1/2’’ 38 4 3/4 120 11 3/8 290
Ø2’’ 51 4 1/2 115 11 1/2 293
Ø2 1/2’’ 63 4 3/4 120 12 3/8 315
Ø3’’ 76 4 7/8 125 13 1/4 338
Ø4’’ 102 4 3/4 120 13 7/8 354
mm L1 L2 R
Ø3/8’’ 10 4 3/8 111 4 3/8 111 5/8 15
Ø1/2’’ 13 4 1/2 113 4 4/8 113 6/8 20
Ø1’’ 25 4 7/8 125 4 7/8 125 1 1/2 38
Ø1 1/4’’ 32 4 7/8 125 4 7/8 125 1 5/8 40
Ø1 1/2’’ 38 5 127 5 127 1 3/4 45
Ø2’’ 51 5 1/4 134 5 1/4 134 3 75
Ø2 1/2’’ 63 5 5/8 144 5 5/8 144 3 1/2 90
Ø3’’ 76 6 1/8 155 6 1/8 155 4 1/8 105
Ø4’’ 102 6 5/8 167 6 5/8 167 5 7/8 150
mm L1 L2 R
Ø3/8’’ 10 4 3/4 120 4 3/4 120 5/8 15
Ø1/2’’ 13 4 7/8 125 4 7/8 125 3/4 20
Ø1’’ 25 5 7/8 148 5 7/8 148 1 1/2 38
Ø1 1/4’’ 32 5 7/8 150 5 7/8 150 1 5/8 40
Ø1 1/2’’ 38 6 1/8 155 6 1/8 155 1 3/4 45
Ø2’’ 51 7 1/8 180 7 1/8 180 3 75
Ø2 1/2’’ 63 7 7/8 200 7 7/8 200 3 1/2 90
Ø3’’ 76 8 5/8 220 8 5/8 220 4 1/8 105
Ø4’’ 102 10 1/4 260 10 1/4 260 5 7/8 150
mm L1 L2 R
Ø1/2’’-3/8’’ Ø13/10 4 7/8 125 4 7/8 125 6/8 20
Ø1’’-1/2’’ Ø25/13 5 3/4 147 5 5/8 142 1 1/2 37
Ø1 1/4’’-1’’ Ø32/25 6 1/4 160 6 1/4 160 2 50
Ø1 1/2’’-1’’ Ø38/25 6 1/4 160 6 1/4 160 2 50
Ø1 1/2-1 1/4’’ Ø38/32 6 1/4 160 6 1/4 160 2 50
Ø2’’-1’’ Ø51/25 7 1/8 180 7 1/4 185 3 75
Ø2’’-1 1/2’’ Ø51/38 7 1/8 180 7 1/8 180 3 75
Ø2 1/2-1 1/2’’ Ø63/38 8 1/4 210 8 1/8 205 3 6/8 95
Ø2 1/2’’-2’’ Ø63/51 8 1/4 210 7 7/8 200 3 6/8 95
Ø3’’-2’’ Ø76/51 8 1/2 215 8 2/8 210 4 1/8 105
Ø3’’-2 1/2’’ Ø76/63 8 1/2 215 8 5/8 220 4 1/8 105
Ø4’’-3’’ Ø102/76 10 1/4 260 10 2/8 260 5 7/8 150
Y-SHAPE CL/CL TEE-SHAPE CL/CL
mm L1 L2
Ø3/8’’ 10 4 1/8 105 4 1/2 115
Ø1/2’’ 13 4 1/8 105 4 1/2 115
Ø1’’ 25 4 3/8 110 4 3/4 120
Ø1 1/4’’ 32 4 3/8 110 4 3/4 120
Ø1 1/2’’ 38 4 3/8 110 4 3/4 120
Ø2’’ 51 4 1/8 105 4 1/4 115
Ø2 1/2’’ 63 4 3/8 110 4 3/4 120
Ø3’’ 76 4 1/2 115 4 7/8 125
Ø4’’ 102 4 3/8 110 4 3/4 120

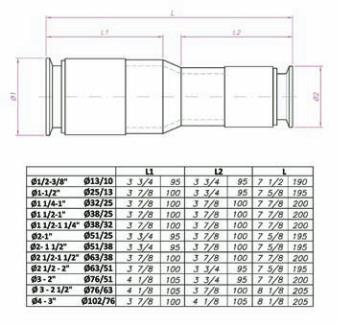

STRAIGHT REDUCER CL/CL
mm L1 L2 R
Ø1/2’’-3/8’’ Ø13/10 3 3/4 95 3 3/4 95 7 1/2 190
Ø1’’-1/2’’ Ø25/13 3 7/8 100 3 3/4 95 7 5/8 195
Ø1 1/4’’-1’’ Ø32/25 3 7/8 100 3 7/8 100 7 7/8 200
Ø1 1/2’’-1’’ Ø38/25 3 7/8 100 3 7/8 100 7 7/8 200
Ø1 1/2-1 1/4’’ Ø38/32 3 7/8 100 3 7/8 100 7 7/8 200
Ø2’’-1’’ Ø51/25 3 3/4 95 3 7/8 100 7 5/8 195
Ø2’’-1 1/2’’ Ø51/38 3 3/4 95 3 7/8 100 7 5/8 195
Ø2 1/2-1 1/2’’ Ø63/38 3 7/8 100 3 7/8 100 7 7/8 200
Ø2 1/2’’-2’’ Ø63/51 3 7/8 100 3 3/4 95 7 5/8 195
Ø3’’-2’’ Ø76/51 4 1/8 105 3 3/4 95 7 7/8 200
Ø3’’-2 1/2’’ Ø76/63 4 1/8 105 3 7/8 100 8 1/8 205
Ø4’’-3’’ Ø102/76 3 7/8 100 4 1/8 105 8 1/8 205
11
mm L1 L
Ø3/8’’ 10 4 1/2 115 9 7/8 252
Ø1/2’’ 13 4 1/2 115 10 255
Ø1’’ 25 4 3/4 120 10 7/8 277
Ø1 1/4’’ 32 4 3/4 120 11 1/8 284
Ø1 1/2’’ 38 4 3/4 120 11 3/8 290
Ø2’’ 51 4 1/2 115 11 1/2 293
Ø2 1/2’’ 63 4 3/4 120 12 3/8 315
Ø3’’ 76 4 7/8 125 13 1/4 338
Ø4’’ 102 4 3/4 120 13 7/8 354
