VENA

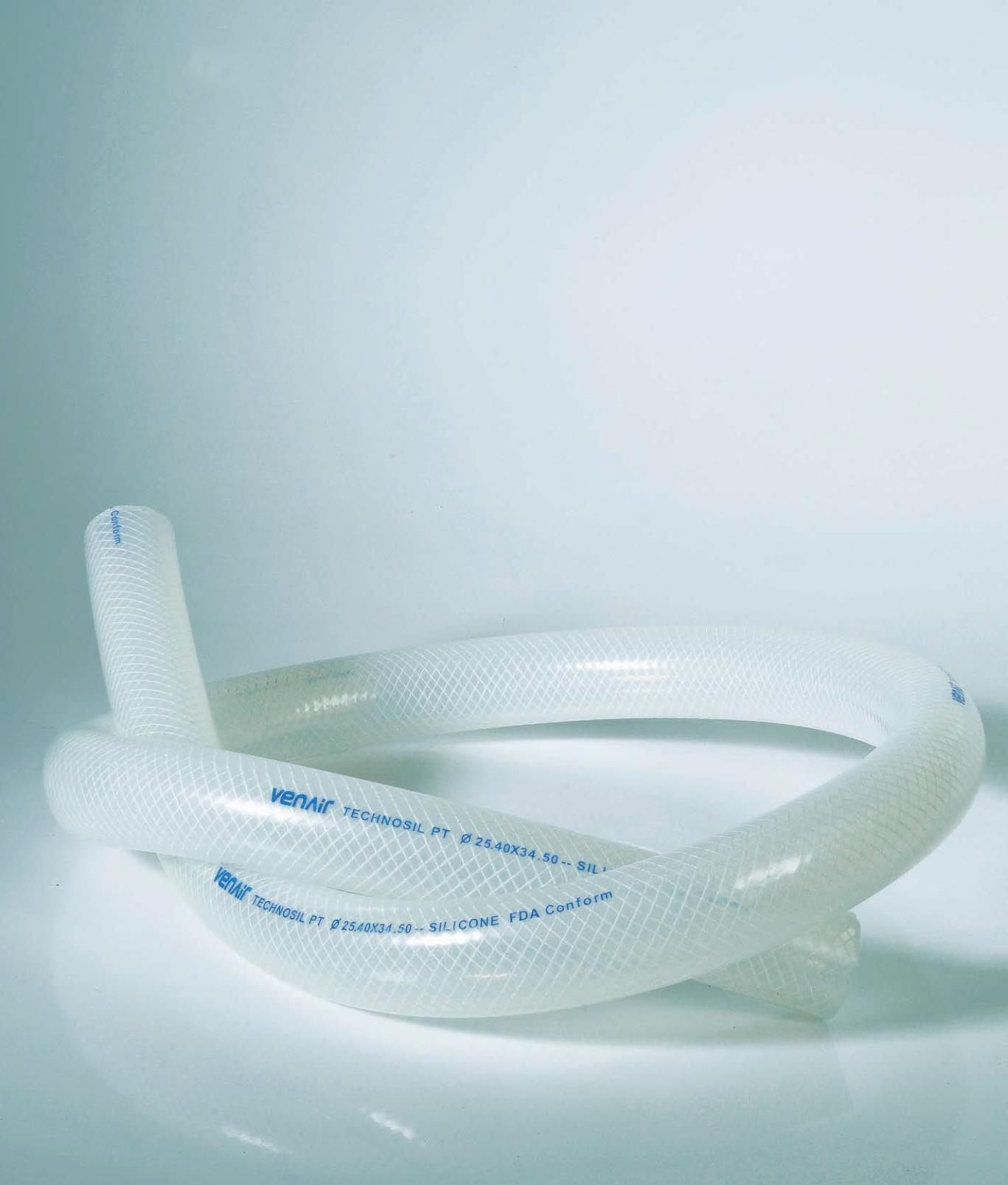

TECHNOSIL
Elastomer:
Extruded Platinum cured silicone produced in accor-
dance with:
•
US FDA (Foods and Drugs Administration) Standard 21
CFR 177.2600
•
German BfR Standard part XV
•
1935/2004/EC Regulation and European Council
Resolution AP 2004 (5) – silicones
•
USP Class VI standard
•
3A Sanitary Standard 18-03 Class I (hose)
•
3A Sanitary Standard 62-02 (fitted hoses)
Fabric reinforcement:
Polyester braiding.
Stainless steel inside:
No
Inner appearance:
Translucent and smooth.
Outer appearance:
Translucent or colored, and smooth.
Standard length of manufacture:
10m and 20m (33ft and 66ft)
Temperature scale:
-60º C / +180º C (-76º F / 356º F).
Applications
For conveying liquids at low pressure where a tight bending ra-
dius is not required.
Ideal for use in proportioning and loading tanks in any length.
These hoses compensate vibrations and level differences.
It is not recommended for vacuum.
Inner Diameter *
Outer Diameter
Working Pressure **
Bursting Pressure **
Bending
Radius
ISO 1402/2009
ISO 1402/2009
ISO 1746/2009
(mm)
(inch)
(mm)
(inch)
(bar at 20ºC)
(psi at 68ºF)
(bar at 20ºC)
(psi at 68ºF)
(mm)
6,35
1/4
13,20
0,52
9,3
135,4
28,0
406
40
7,93
5/16
15,00
0,59
7,7
111,2
23,0
334
45
9,52
3/8
16,60
0,65
7,0
101,5
21,0
305
55
12,70
1/2
20,30
0,80
5,7
82,2
17,0
247
70
15,87
5/8
24,50
0,96
4,3
62,9
13,0
189
85
19,05
3/4
27,90
1,10
3,7
53,2
11,0
160
95
22,22
7/8
31,30
1,23
3,3
48,3
10,0
145
110
25,40
1
34,50
1,36
3,0
43,5
9,0
131
135
31,75
1 1/4
40,80
1,61
2,3
33,8
7,0
102
160
6
* Other diameters can also be manufactured. Please consult.
** Pressure data hold at room temperature. Please reduce pressure values by 20% for each increase of 100ºC / 212ºF
