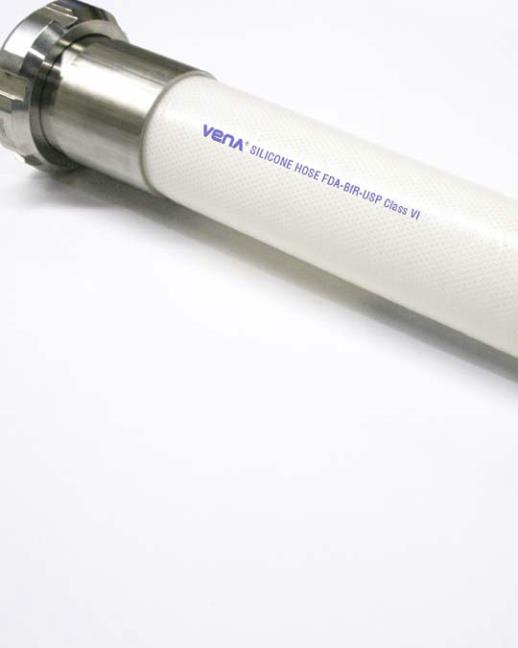

VENA SIL
640
Elastomer: Platinum cured silicone produced in accordance with:
•
US FDA (Foods and Drugs Administration) Standard 21 CFR
177.2600
•
German BfR Standard part XV
•
1935/2004/EC Regulation and European Council Resolution
AP 2004 (5) – silicones
•
USP Class VI standard
Fabric reinforcement:
Polyester fabric reinforcement. It is possible to
produce a more reinforced version named VENA SIL 640 MIF, manu-
factured with a special high tenacity polyester fabric for higher pres-
sure.
Stainless steel inside:
No
Inner appearance:
Translucent and smooth.

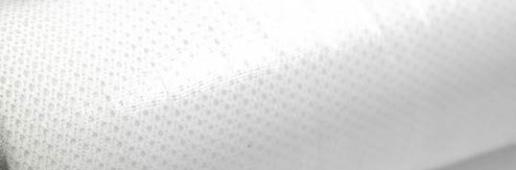

Outer appearance:
Translucent, white or colored, and smooth.
Length of manufacture:
The standard length of manufacture is 4m
(13’).
Upon request, 6m length hoses (19’ 8”) can be manufactured.
Temperature scale:
-60º C / +180º C (-76º F / +356º F).
Applications
For use in straight sections equipped with metal fittings terminals,
where flexibility is not required.
This model is often used to detect metal particles which may occur
during filling of food products such as cream or baby food. This mo-
del is not recommended for vacuum.
Inner Diameter*
Wall thick-
ness
Working Pressure**
Bursting Pressure**
ISO 1402/2009 (bar at 20ºC)
ISO 1402/2009 (psi at 68ºF)
ISO 1402/2009 (bar at 20ºC)
ISO 1402/2009 (psi at 68ºF)
(mm)
(inch)
+1 -0.5 (mm)
640
640 MIF
640
640 MIF
640
640 MIF
640
640 MIF
6
1/4
11,7
23,6
169
342
35,0
71
508
1030
8
5/16
10,7
20,5
155
297
32,0
61
464
885
10
3/8
9,7
18,3
140
265
29,0
55
421
798
13
1/2
8,7
16,0
126
232
26,0
48
377
696
16
5/8
8,0
14,5
116
210
24,0
43
348
624
19
3/4
7,7
12,9
111
187
23,0
39
334
566
22
7/8
7,0
12,3
102
178
21,0
37
305
537
25
1
4.5
6,7
11,6
97
168
20,0
35
290
508
32
1 1/4
5,7
10,2
82
148
17,0
31
247
450
38
1 1/2
5,0
9,4
73
136
15,0
28
218
406
51
2
4,0
8,1
58
117
12,0
24
174
348
63
2 1/2
3,3
6,9
48
100
10,0
21
145
305
76
3
2,7
5,7
39
83
8,0
17
116
247
102
4
1,7
3,3
24
48
5,0
10
73
145
* Other diameters can also be manufactured. Please consult.
** Pressure data hold at room temperature. Please reduce pressure values by 20% for each increase of 100ºC / 212ºF
