Bond-Rite® EZ
The Bond-Rite® EZ is a portable unit that bonds equipment engaged
in liquid or powder transfers conducted in locations where installed
grounding and bonding equipment is not provided. The EZ comprises
a Bond-Rite® clamp with a flashing LED located in the clamp hous-
ing combined with the option of a heavy-duty or medium duty 2-pole
clamp, plus a flexible range of cable length options to complete the
assembly.
•provides the user with the flexibility of bonding equipment in loca-
tions where permanent grounding and bonding installations are not
provided
•10 ohms loop resistance monitoring is compliant with NFPA77 and
international Best Practice standards.
•FM, ATEX, CSA International approved: Class I, Div 1, Groups A,
B, C, D; Class II, Div. 1, Groups E, F, G; Class III, T4

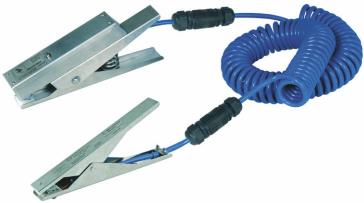

Bond-Rite® EZ Spiral Cable and Medium Duty Clamp with VESX45-IP Clamp Attached
Working Length Description Part #
10' 18' cable with VESX45-IP medium duty clamp BREZ03IPX45
16' 28' cable with VESX45-IP medium duty clamp BREZ05IPX45
Bond-Rite® EZ Spiral Cable and Heavy Duty Clamp with VESX90-IP Clamp Attached
Working Length Description Part #
10' 18' cable with VESX90-IP heavy duty clamp BREZ03IPX90
16' 28' cable with VESX90-IP heavy duty clamp BREZ05IPX90
The Bond-Rite® clamp is the only static grounding clamp which provides operators with visual verification that potentially charged equip-
ment is connected to a verified static grounding point. The clamp contains a bright green LED which flashes continuously when the
clamp detects the grounding circuit has a resistance of 10 ohms or less, informing the operator that hazardous electrostatic charges do
not have the potential to accumulate on the equipment. The battery provides up to 6 months of power for equipment grounded for up to
an average of 6 hours per day.
•utilizes a highly visible LED housed in the grounding clamp alerting operators when low resistance connection is achieved with poten-
tially charged equipment
•Tungsten carbide tips bite through product deposits, paint and rust to ensure proper bonding connections are made.
•Stainless steel clamps are designed to withstand tough chemical processing and industrial environments.
•Quick connect provides personnel with the flexibility of removing the clamp from zoned / classified areas for battery replacement.

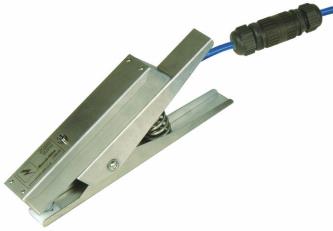

Bond-Rite® clamp with
quick connect
quick connect
•recommended for use in processes using drums, containers, solvent safety cans and mixing vessels of 26 gallon capacity or less in
situations where space does not permit the use of heavy duty clamps
•jaw opening diameter of 0.6"
•recommended for grounding large equipment ranging from 26 gallon drums to 500 gallon IBC's, mixing vessels and mobile tanks
•jaw opening diameter of 1.57"
