Petroleum Replacements
5000AIR Series Roller Ball End Air Interlock Valves
TDF Series Tube Doors
Repair Kits
Part # Description
TDF68RK 6" and 8” repair kit, includes stainless
steel spring, bushings and pin
TDF7RK 7" repair kit, includes stainless steel
spring, bushings, pin and washer
SPRG-A4630 replacement stainless steel spring only
Bill of Materials
Item # Description Part # Qty
1 body --- 1
2 piston use kit 5000AIRSK 1
3 end plug use kit 5000AIRSK 1
4 Buna O-ring use kit 5000AIRSK 3
5 spring use kit 5000AIRSK 1
6 urethane wiper use kit5000AIRSK 1
7 retaining ring RING-WH-50 1
8 mounting bolts use kit5000AIHK 2
9 lock washer use kit 5000AIHK 2
10 roller ball assembly 5000AIRRK1 1
Repair Kits
Part # Description Includes
Item #
5000AIHK replacement mounting bolts and lock
washers 8, 9
5000AIRSK replacement piston and seal kit 2, 3, 4,
5, 6
5000AIRRK1 replacement roller ball 10
Product instruction sheets and technical data can be viewed on our website at
dixonbayco.com by selecting the "Resources" menu

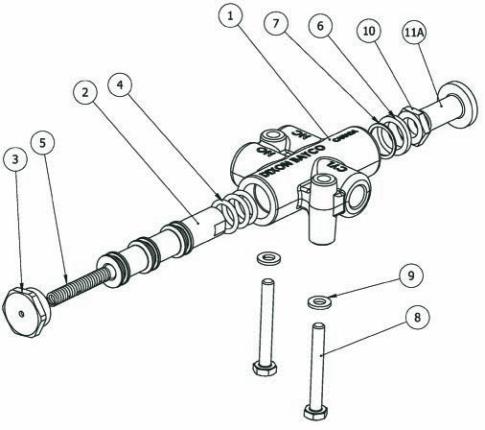

5000AIHD Series Heavy Duty Air Interlock Valve
Bill of Materials
Item # Description Part # Qty
1 body --- 1
2 piston use kit 5000AIHDSK 1
3 end plug use kit 5000AIHDSK 1
4 O-ring use kit 5000AIHDSK 3
5 spring use kit 5000AIHDSK 1
6 wiper use kit 5000AIHDSK 1
7 retaining ring WH-77 1
8 mounting bolts use kit 5000AIHK 2
9 lock washer use kit 5000AIHK 2
10 nut 390909 1
11A 1" plunger end use kit 5000AIHDRK1
11B 1.5" plunger end use kit 5000STHD
Repair Kits
Part # Description Includes
Item #
5000AIHK mounting bolts and lock washers 8, 9
5000AIHDSK replacement piston and seal kit 2, 3, 4,
5, 6
5000AIHDRK1 replacement 1" plunger assembly 10, 11A
5000STHD replacement 1.5" plunger assembly 10, 11B
