VR4000 Series 4" Vapor Hose Valves
VR4100 Series 4" Vapor Hose Valves
VR3100 Series 3" Vapor Hose Valves
Bill of Materials
Item # Description Part # Qty
1 body --- 1
2 valve VR4100-2 1
3 bushing VR6000-3 1
4 Viton® O-ring O-RING-AS-334 1
5 valve plate VR4100-3 1
6 screw SC5-16NCX.75FSS 1
7 valve spring SPRING-L5123 1
Repair Kit
Part # Description Includes
Item #
VR4100RK1 valve, bushing, O-ring, valve plate,
screw, and spring
2, 3, 4, 5,
6, 7
Bill of Materials

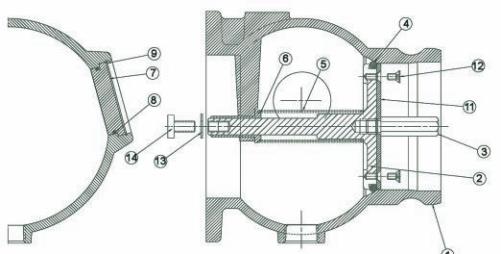

Item # Description Part # Qty
1 body --- 1
2 valve VR4000-2 1
3 valve standoff VR4000-3 1
4 valve O-ring O-RING-AS339-V 1
5 spring SPRG/L4432 1
6 bushing VR6000-3 1
7 sight glass VR4000-4 2
8 sight glass O-ring O-RING#132 2
9 retaining ring RING-VH-225 2
10 plug 110748 1
11 valve plate VR4000-5 1
12 valve plate screws SC1024375-SS 2
13 washer 112270 1
14 hex cap screw 112269 1
Product instruction sheets and technical data can be viewed on our website at
dixonbayco.com by selecting the "Resources" menu
Bill of Materials
Item # Description Part # Qty
1 body --- 1
2 valve 341827 1
3 bushing VR6000-3 1
4 Viton® O-ring O-RING-AS-334 1
5 valve plate VR4100-3 1
6 screw SC5-16NCX.75FSS 1
7 valve spring SPRING-L5123 1
8 washer 112270 1
9 nut 112271 1
Repair Kit
Part # Description Includes
Item #
VR4100RK1 valve, bushing, O-ring, valve plate,
screw, and spring
2, 3, 4, 5,
6, 7
