Fuel Delivery
800.355.1991 72 Dixon Bayco 2013
Replacement Parts
Petroleum
Petroleum Replacements
Bottom Unit, for Side Lever Elbows

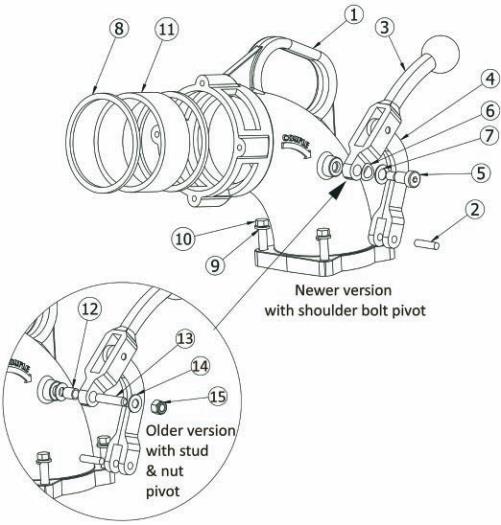

Top Side Lever Elbows
Fits 6200 Elbow Only
Fits 6200, 6400 and 6500 Standard and Tall Elbows
Bill of Materials
Repair Kits
Part # Description Includes
Item #
6200-15ASSM replacement handle, linkage and pin 2, 3, 4
6200SGK replacement sight glass and
Baylast™ seals 8, 11
6000EHK replacement bolts and lock washers 9, 10
6200SBK 1 replacement shoulder bolt pivot,
wave washer and flat washer 5, 6, 7
6200SHK 2 replacement stud pivot, nylon
washers, bushing and nut
12, 13,
14, 15
Item # Description Part # Qty
1 body 6200-1 1
2 pin PIN5/16X 1 1/4-P 2
3 handle use kit 6200-15ASSM 1
4 handle linkage use kit 6200-15ASSM 1
5 1 shoulder bolt use kit 6200SBK 1
6 1 wave washer use kit 6200SBK 2
7 1 SS flat washer use kit 6200SBK 1
8A Baylast™ gasket 4433 2
8B Viton® gasket (optional) 4426 2
9 lock washer use kit 6000EHK 4
10 bolt use kit 6000EHK 4
11 sight glass use kit 6200SGK 1
12 2 bushing use kit 6200SHK 1
13 2 stud use kit 6200SHK 2 1
14 2 nylon washer use kit 6200SHK 2 2
15 2 nut use kit 6200SHK 2 1
1 items 5 through 7 are for newer version with shoulder bolt pivot only
2 for older version with stud and nut pivot use items 12 through 15 instead
Product instruction sheets and technical data can be viewed on our website at
dixonbayco.com by selecting the "Resources" menu
Bill of Materials
Repair Kits
Part # Description Includes
Item #
6230 complete standard replacement bottom
unit all
6230X complete tall replacement bottom unit all
6200ARK replacement L and R arms, main gasket,
O-rings, small and large bushings
2, 3, 5,
7, 9, 10
6200BK replacement small and large bushings 2, 3
Item # Description Part # Qty
1 body use kit 6230 or 6230X 1
2 small bushing use kit 6200BK 2
3 large bushing use kit 6200BK 2
4A handle stem (standard) 6200-7 1
4B handle stem (tall) 6200-7X 1
5 main gasket 6000-9 1
6 spring 112012 1
7 O-ring AS156 1
8 grease nipple NIPPLE/1 1
9 right arm use kit 6200ARK 1
10 left arm use kit 6200ARK 1
11 pin PIN5/16X 1 1/4-P 1
