Overfill Products
Overfill Products
FloTech FT151RL ROM Link Replacement Sensor
Fuel Tanker Overfill Detection
Application: The FT151RL is designed to replace the complete ROM Link sensor assembly. Simply remove the
Civacon sensor housing from the manhole lid and install the FloTech FT151RL or FT151RL-12.
Plug the FT151RL into the wiring harness using our connector adapter and the change out is
complete.
Standards: Drop in replacement for the Civacon ROM Link sensors 1554-007 & 1554-0012.
Materials: Aluminum housing with stainless steel hardware
Features & Benefits: •Trouble free probes: FloTech brand probes incorporate a double elastomer design which seals
and secures the sensitive glass optic prism tip. The elastomer seals are flexible allowing thermal
expansion and resistance to steam cleaning and petroleum chemical attack.
•Unlike our competitors, FloTech probes do not use internal coil cord connectors which consistent-
ly fail in moisture. All FloTech Plug-n-Play probes are prewired to our harness connector, which
has proven itself in moisture.
•FloTech sensor housings have a sturdy bolt on cap to better seal out water.
•The FT151RL includes an adapter connector to permit interchange between Civacon’s Rom link
system and the FloTech FT150RL sensor.
•Custom lengths available upon request
•The FT151RL sensor housing contains a Plug-n-Play probe. The sensor housing has a 2" NPT
mounting thread, heavy duty stainless steel hardware, and Viton® probe seal. Install into either
a 2" NPT threaded port or a 2-3/8" diameter tank opening using the gasket and locking nut pro-
vided. All screws and rings are heavy duty stainless steel for easy assembly and long life.

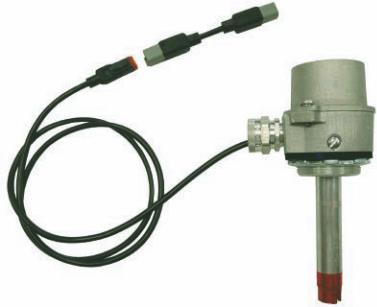

FT151RL
Part # Description
FT151RL Housing with 7" Plug-n-Play overfill detection probe, with Plug-n-Play harness and ROM link jumper cable
connector
FT151RL-12 Housing with 12" Plug-n-Play overfill detection probe, with Plug-n-Play harness and ROM link jumper cable
connector
FT152RL Retain sensor with Plug-n-Play harness and ROM link jumper cable
Replacement Probes
FT150P Replacement 7" Plug-n-Play probe for FT151RL only
FT150P-12 Replacement 12" Plug-n-Play probe for FT151RL-12 only
FT152RL Replacement Plug-n-Play probe for FT152RL
Please refer to chart on pages 56-59 for cross references to other manufacturer part numbers.
Product instruction sheets and technical data can be viewed on our website at dixonbayco.com by selecting the "Resources" menu
Biofuel Compatible

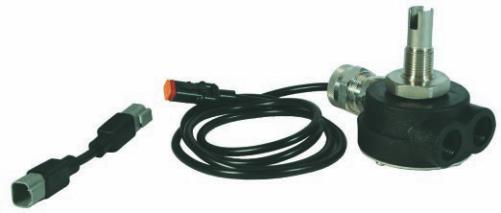

FT152RL
