Overfill Products
Overfill Products
FloTech API Optic 5 Wire Overfill Detection Systems
Fuel Tanker Overfill Detection
FloTech API Optic Overfill 5 Wire Systems (Top Detection Only)
Features and Benefits:

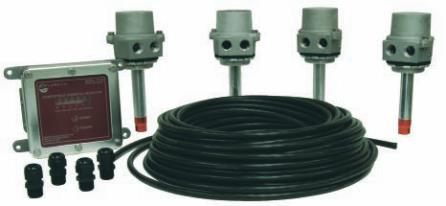

•FloTech brand overfill system kits provide everything needed to install a new overfill system on your tank. One to six
compartment kits are available from our inventory. Systems include: 1 FT103 monitor, 1 FT101 overfill sensor per
compartment, cable and strain reliefs (cable glands).
•Other probe lengths are available
Part # Description
FT1001 API optic 5 wire, 1 compartment overfill detection system (top only)
FT1002 API optic 5 wire, 2 compartment overfill detection system (top only)
FT1003 API optic 5 wire, 3 compartment overfill detection system (top only)
FT1004 API optic 5 wire, 4 compartment overfill detection system (top only)
FT1005 API optic 5 wire, 5 compartment overfill detection system (top only)
FT1006 API optic 5 wire, 6 compartment overfill detection system (top only)
FT1001-12 API optic 5 wire, 1 compartment overfill detection system (top only) - 12" probes
FT1002-12 API optic 5 wire, 2 compartment overfill detection system (top only) - 12" probes
FT1003-12 API optic 5 wire, 3 compartment overfill detection system (top only) - 12" probes
FT1004-12 API optic 5 wire, 4 compartment overfill detection system (top only) - 12" probes
FT1005-12 API optic 5 wire, 5 compartment overfill detection system (top only) - 12" probes
FT1006-12 API optic 5 wire, 6 compartment overfill detection system (top only) - 12" probes
Please refer to chart on pages 56 - 59 for cross references to other manufacturer part numbers.
Product instruction sheets and technical data can be viewed on our website at dixonbayco.com by selecting the "Resources" menu
Biofuel Compatible
Application: The FloTech API Optic 5 wire system is perfectly suited for both new and existing tank installations.
The components have a long list of features which make them more reliable than competitor
products; the result is years of trouble free service.
The FloTech API Optic 5 wire system is a conventionally wired system, which requires wiring
connections to be made using crimp connectors. If a simple plug together system is desired, please
see our Checkmate Plug-n-Play system as shown on pages 35 - 39.
Standards: Compatible with the Scully brand 5 wire optic system. The components are drop-in replacements
and compatible with the signal format required by Scully brand API Optic 5 wire on-board monitors.
Materials: Dependent upon the component, see each product section for materials
Features & Benefits: •See the features and benefits of each of the system components
•Biofuel compatible up to E100 (100% Ethanol) and B100 (100% bio diesel)
