Fuel Nozzles
800.355.1991 Dixon Bayco 2013 27
Petroleum Products
ProductsPetroleum
Farm and Consumer Nozzles
Big Mouth™ Diesel Nozzle
Features and Benefits:
•UL / ULC listed
•Heavy duty, strong and secure hook, makes it easy to hang the nozzle.
•Automatic fuel nozzle designed for use with small 12 volt and AC utility pumps as
well as large farm and consumer pumps.
•Heavy duty, stronger and more secure hook makes it easy to hang the nozzle on
the pump.
•Include plastic scuff guard, color coded black for gasoline, and green for diesel.
•These nozzles are not for use with gravity flow tanks, for gravity flow please see our
900 series nozzles as shown on page 30.
Features and Benefits:
•Micro-touch valve allows precise flow control
•Roto-matic latch pin provides positive auto shut-off
• This nozzle is not to be used with gravity flow tanks.
•Pure PTFE packing eliminates stem leaks
•Super tough nylon hold-open clip and hand guard bend, but won't break.
•Snap-on handle cover makes changing scuff guards easy.

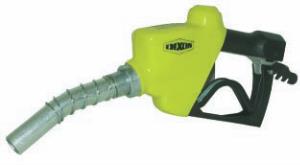

•Aellow scuff guard
•Automatic shutoff
•Underwriter's Listed
•Not designed for use with small 12 volt pumps, AC utility pumps, farm pumps or consumer pumps
Fuel Master™ Diesel Nozzle
Features and Benefits:
•Provides the high flow capacity required by many truck stops and terminal operations.
•Micro-touch valve provides smooth operation and exceptional flow control.
• These nozzles are not to be used with gravity flow tanks.
•Super tough nylon hand guard and hold-open clip
•Easy to change 'locknut style' spout assembly
•Green scuff guard
•Automatic shutoff
•Underwriter's Listed
•Not designed for use with small 12 volt pumps, AC utility pumps, farm pumps or
consumer pumps
Female
NPT
Inlet
Spout
Size
Intended
Service
Approximate Flow
Rate At 20 PSI
(GPM)
Approximate
Weight Lbs
Scuff Guard
Color Part #
¾" 13/16" Gasoline 14 2½ Black DN7UOBF
¾" 15/16" Diesel 14 2½ Green DN7LOBF
Female
NPT
Inlet
Spout
Size
Intended
Service
Approximate Flow
Rate At 20 PSI
(GPM)
Approximate
Weight Lbs
Scuff Guard
Color Part #
1" 1-1/8" Diesel 20 3 Yellow DFN100
Female
NPT
Inlet
Spout
Size
Intended
Service
Approximate Flow
Rate At 20 PSI
(GPM)
Approximate
Weight Lbs
Scuff Guard
Color Part #
1" 1-3/16" Diesel 30 3½ Green DFN100HF
gasoline
diesel
DFN100HF
DFN100SF
