Fuel Tanker Overfill Detection
800.355.1991 140 Dixon Bayco 2013
Overfill
Replacement Parts
Overfill Replacements
Rack Cords
Product instruction sheets and technical data can be viewed on our website at
dixonbayco.com by selecting the "Resources" menu

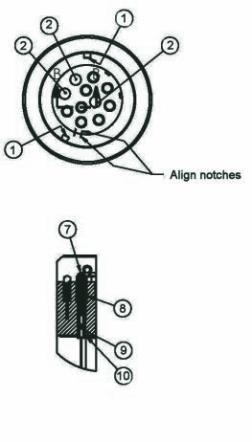

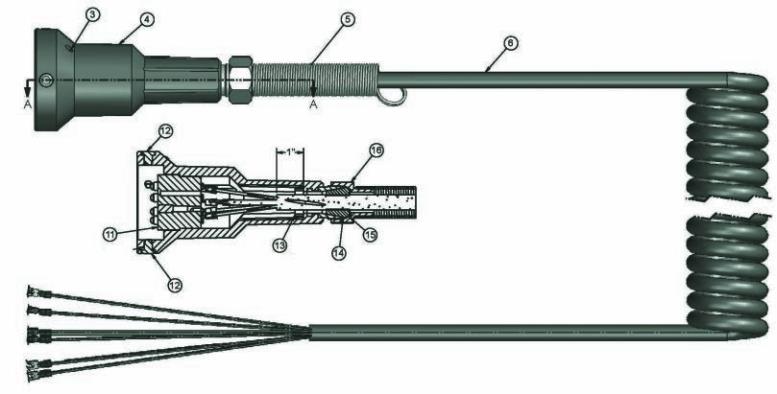

Bill of Materials
Item # Description Part #
FT600FT600CFT600SFT600SCFT620FT620S 1 bayonet stud 10718SS 2 4 2 4 3 3
2 plastic black pin insert BLACK BUTTON INSERT 3 1 3 1 5 5
3 stainless screw 10717SS 1 1 1 1 5 1
4A green "thermistor" glass reinforced nylon plug body 10523NY-004 1 1 1 1 n/a n/a
4B blue "optic" glass reinforced nylon plug body 10523NY-003 n/a n/a n/a n/a 1 1
5 stainless, cable bend restrictor spring 10250 1 1 1 1 1 1
6A thermistor cable assembly 30' coilded (US) 10259 1 n/a n/a n/a n/a n/a
6B thermistor cable assembly 30' coilded (Canada) 10259-C n/a 1 n/a n/a n/a n/a
6C thermistor cable assembly 20' straight (US) 10259-S n/a n/a 1 n/a n/a n/a
6D thermistor cable assembly 20' straight (Canada) 10259-CS n/a n/a n/a 1 n/a n/a
6E optic cable assembly 30' coilded (US) 10290 n/a n/a n/a n/a 1 n/a
6F optic cable assembly 30' straight (US) 10290-S n/a n/a n/a n/a n/a 1
7 plug pin 10550SS 8 10 8 10 6 6
8 stainless plug spring 10253 8 10 8 10 6 6
9 set screw 10260 8 10 8 10 6 6
10 retaining ring 10252 8 10 8 10 6 6
11 long plastic contact block 10524PL-001 1 1 1 1 1 1
12 aluminum bayonet pin plug 10718PLUG 2 4 2 4 n/a n/a
13 stainless double ear pinch on clamp SINGLE1518R 1 1 1 1 1 1
14 cord grip bushing 10715NP 1 1 1 1 1 1
15 cord grip washer 10716ST 1 1 1 1 1 1
16 aluminum strain relief nut 10249 1 1 1 1 1 1
Repair Kits
Part # Description Includes Item #
FT601 Replacement thermistor plug assembly, 8 pin 4 J slot (US) 1-4A,5,7-11,14-16
FT601-10 Replacement thermistor plug assembly, 10 pin 4 J slot (Canada) 1-4A,5,7-11,14-16
FT621 Replacement optic plug assembly, 6 pin 3 J slot (US) 1-4B,5,7-11,14-16
