Fuel Tanker Overfill Detection
800.355.1991 Dixon Bayco 2013 125
Overfill Replacements
Overfill
Replacement Parts
Product instruction sheets and technical data can be viewed on our website at
dixonbayco.com by selecting the "Resources" menu
Plug-n-Play Sensors FT151P Series, Overfill Sensor Housings
Repair Kits
Part # Description Includes Item #
FT150P Replacement Plug-n-Play overfill detection probe. - 7" 1
FT150-12P Replacement Plug-n-Play overfill detection probe. - 12" 1
FT150-18P Replacement Plug-n-Play overfill detection probe. - 18" 1
FT9000P Complete replacement Plug-n-Play sensor housing (without probe) 2-14
FT9001 Sensor housing gasket & O-ring kit 5, 6, 7, 13
FT9011 Sensor housing cap with screws & lock washers 2, 3, 8

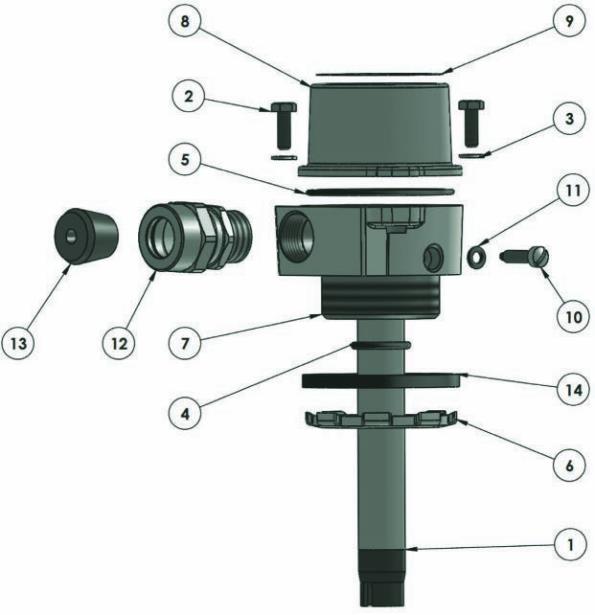

Bill of Materials
Item # Description Part # Qty
1 Plug-n-Play probe See repair kits 1
2 stainless steel screw 10110 2
3 stainless steel lock washer - 1/4" 10111 2
4 Viton® O-ring 10125 (was FT9027) 1
5 Buna O-ring 10126 (was FT9049) 1
6 steel locknut 10128 (was FT9012) 1
7 aluminum sensor housing 10183-P&P 1
8 aluminum sensor housing cap 10185 1
9 mylar label 10204 1
10 stainless steel screw with nylon insert 10212 1
11 Buna-N O-ring 10213 1
12 cord grip assembly 10248 1
13 rubber bushing 10638 1
14 Buna-N gasket 250-G-BU (was FT9026) 1
