Fuel Nozzles
800.355.1991 114 Dixon Bayco 2013
Replacement Parts
Petroleum
Petroleum Replacements

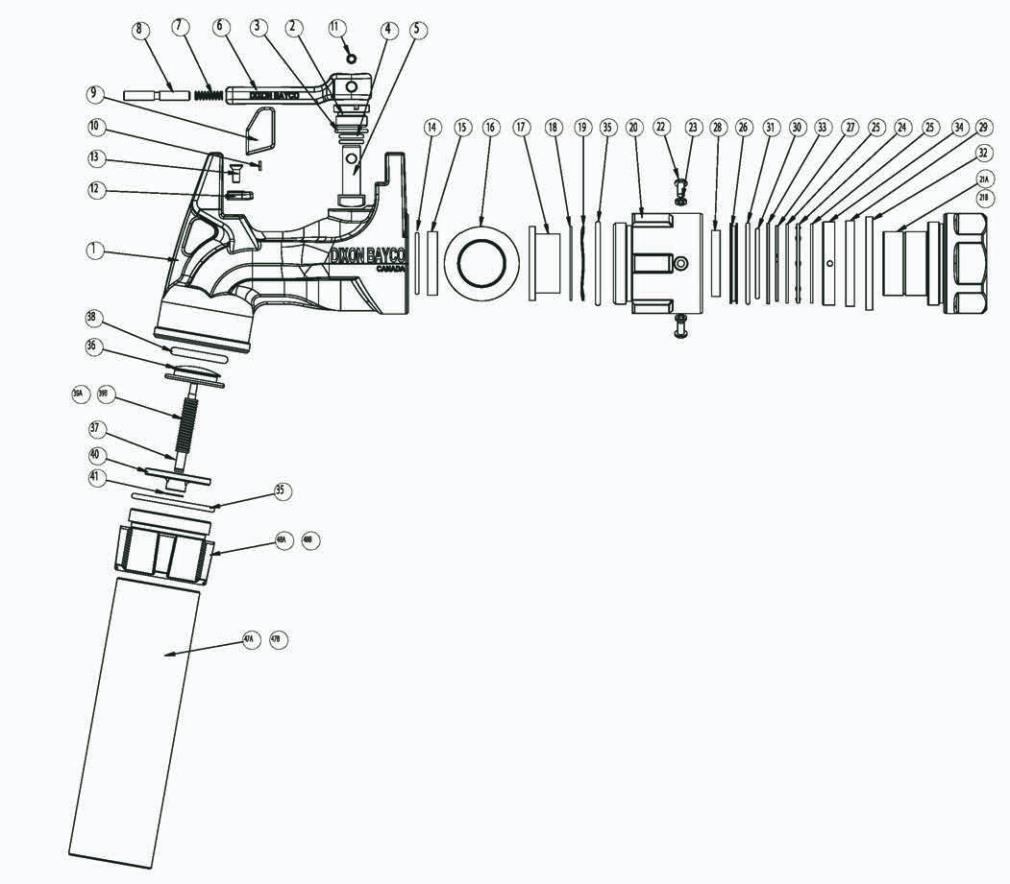

BL Super Ball Nozzles
BL918, BL919 & BL920
Repair Kits
Product instruction sheets and technical data can be viewed on our website at
dixonbayco.com by selecting the "Resources" menu
Part # Description Includes Item #
SWMF-RK1 inlet swivel grease nipple kit (optional) not illustrated
SWMF-RK22 inlet swivel seal and wear kit 26, 28, 29, 30, 31, 32
SWMF-RK32 complete inlet swivel rebuild kit 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34
SWMF-RK42 2" FNPT replacement inlet swivel 20, 21A, 22(3), 23(3), 24, 25(2), 26, 27, 28, 29, 30,
31, 32, 33, 34, 35
SWMF-RK52 1½" FNPT replacement inlet swivel 20, 21B, 22(3), 23(3), 24, 25(2), 26, 27, 28, 29, 30,
31, 32, 33, 34, 35
BL-RK42 ball valve shaft seal kit 2, 3, 4, 5
BL-RK102 complete ball nozzle seal kit 3, 4, 14, 15, 17, 35, 38
BL-RK112 optional check valve 5 PSI spring kit 35, 39B
BL-RK122 standard check valve 3 PSI cartridge kit 35, 36, 37, 38, 39a, 40, 41
BL-RK13 replacement trigger kit 6, 7, 8, 9, 10, 11, 12, 13(2)
