SWMF125, SWMF150 and SWMF200 Swivels

Hose Shank and Check Valve Swivels

500AV and 525AV Angle Valves

Repair Kits

Repair Kit

1265

– 1¼" MNPT x 1¼" hose shank

1565U

- 1½" MNPT x 1½" hose shank

1570

- 1½" MNPT x 1⅜" hose shank

1280

– 1¼" MNPT x 1¼" FNPT

1580U

- 1½" MNPT x 1½" FNPT

1580R

- 1¼" MNPT x 1½" FNPT

Check Valve NPT Swivel

Hose x MNPT Swivel

Repair Kits

Bill of Materials

SWMF125 & SWMF150

Item # Description

Part #

Qty

1 female body

---

1

2 male body

---

1

3 screw

use kit

SWMF-RK3

1

4 lock washer

use kit

SWMF-RK3

1

5 thrust bearing

use kit

SWMF-RK3

1

6 thrust washer

use kit

SWMF-RK3

2

7 O-ring holder

use kit

SWMF-RK2

or

SWMF-RK3

1

8 retaining ring

use kit

SWMF-RK3

1

9 front bearing

use kit

SWMF-RK2

or

SWMF-RK3

1

10 rear bearing

use kit

SWMF-RK2

or

SWMF-RK3

1

11 O-ring

use kit

SWMF-RK2

or

SWMF-RK3

1

12 O-ring

use kit

SWMF-RK2

or

SWMF-RK3

1

13 felt ring

use kit

SWMF-RK2

or

SWMF-RK3

1

14 support washer

use kit

SWMF-RK3

1

15 support ring

use kit

SWMF-RK3

1

Part #

Description

Includes Item #

SWMF-RK1

swivel grease nipple kit

---

SWMF-RK2

swivel seal and wear kit

7, 9, 10, 11, 12,13

SWMF-RK3

complete swivel rebuild kit 3, 4, 5, 6, 7, 8, 9, 10,

11, 12, 13, 14, 15

SWMF-RK22

swivel seal and wear kit

3, 4, 10, 11, 12, 13

SWMF-RK32

complete rebuild kit

3, 4, 5, 6, 7, 8, 9, 10,

11, 12, 13, 14, 15

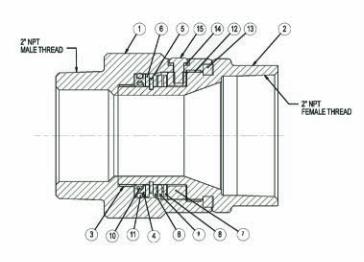

Bill of Materials

SWMF200

Item # Description

Part #

Qty

1 female body

---

1

2 male body

---

1

3 front bearing

use kit

SWMF-RK22

or

SWMFRK32

1

4 O-ring holder

use kit

SWMF-RK22

or

SWMFRK32

1

5 retaining ring

use kit

SWMF-RK32

1

6 support washer

use kit

SWMF-RK32

1

7 support ring

use kit

SWMF-RK32

1

8 thrust washer

use kit

SWMF-RK32

2

9 thrust bearing

use kit

SWMF-RK32

1

10 O-ring

use kit

SWMF-RK22

or

SWMFRK32

1

11 large O-ring

use kit

SWMF-RK22

or

SWMFRK32

1

12 rear bearing

use kit

SWMF-RK22

or

SWMFRK32

1

13 felt ring

use kit

SWMF-RK22

or

SWMFRK32

1

14 lock washer

use kit

SWMF-RK32

3

15 screw

use kit

SWMF-RK32

3

Part #

Description

1200SK

replacement seal kit & retaining ring for 1280, 1265 and 1580R

1500SK

replacement seal kit & retaining ring for 1565U, 1580U

1570RK

replacement seal kit and retaining ring for 1570

Part #

Description

500K

replacement stem guide assembly, plunger

assembly, O-ring and cotter pin

Product instruction sheets and technical data can be viewed on our website at

dixonbayco.com by selecting the "Resources" menu
