Fuel Nozzles
800.355.1991 108 Dixon Bayco 2013
Replacement Parts
Petroleum
Petroleum Replacements
114D and 114DNS (1¼") Bulk Delivery Nozzles
112D and 112DNS (1½") Bulk Delivery Nozzles
Repair Kits
Bill of Materials
Item # Description Part # Qty
1 body --- 1
2 main poppet assembly use kit 112DSK 1
3 secondary poppet assembly use kit 112DSK 1
4 poppet spring SPRG-L368 1
5 Buna cap O-ring O-RING#132 1
6 bronze cap 112DAL-9 1
7 valve stem assembly use kit 112DSK 1
8 trigger use kit 114/2D-TK 1
9 trigger bushing 114DAL-10 1
10 trigger pin PIN-L389-SS 1
11 trigger cotter pin 110746 1
12 ratchet plate 340164 1
13 ratchet plate screws 110798 2
14 spout 1125A 1
Part # Description Includes Item #
112DSK main poppet, 2nd poppet, cap
O-ring, valve stem 2, 3, 5, 7
1125A 1½" aluminum spout 14
1125B 1½" brass spout (optional) ---
114/2D-TK trigger, pin, cotter pin, bushing 8, 9, 10, 11
114DAL-AV-19 blank plate to replace ratchet plate
if ratchet not required (optional) ---
Product instruction sheets and technical data can be viewed on our website at
dixonbayco.com by selecting the "Resources" menu
Repair Kits
Bill of Materials

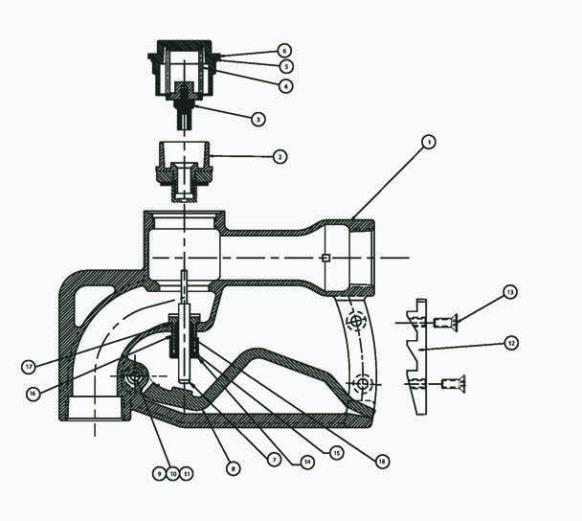

Item # Description Part # Qty
1 body --- 1
2 main poppet assembly use kit 114DSK 1
3 secondary poppet assembly use kit 114DSK 1
4 poppet spring SPRG-L368 1
5 Buna cap O-ring O-RING-AS-129 1
6 bronze cap 114DAL-2 1
7 valve stem assembly use kit 114DSK 1
8 trigger use kit 114/2D-TK 1
9 trigger bushing 114DAL-10 1
10 trigger pin PIN-L389-SS 1
11 trigger cotter pin 110746 1
12 ratchet plate 340164 1
13 ratchet plate screws 110798 2
14 aluminum spout 1143A 1
15 sleeve stem packing SLVL358-1 1
16 valve stem guide & O-ring use kit 114DSK 1
17 valve stem O-ring O-RING-AS016 1
18 valve stem packing STEMPACK-L360 2
19 valve stem nut NUTL357-1 1
Part # Description Includes Item #
114DSK
main and secondary poppets, cap
O-ring, valve stem assembly and
packing, sleeve stem packing and
nut
2, 3, 5, 7, 15, 16,
17, 18, 19
114/2D-TK replacement trigger, pin, bushing &
cotter pin 8, 9, 10, 11
1143A replacement aluminum spout 14
1143B optional brass spout replaces 14
114DAL-AV-19 optional blank plate to replace
ratchet plate, if ratchet not desired replaces 12
