Dry Disconnects
800.355.1991 104 Dixon Bayco 2013
Replacement Parts
Petroleum
Petroleum Replacements
2" Stainless Coupler

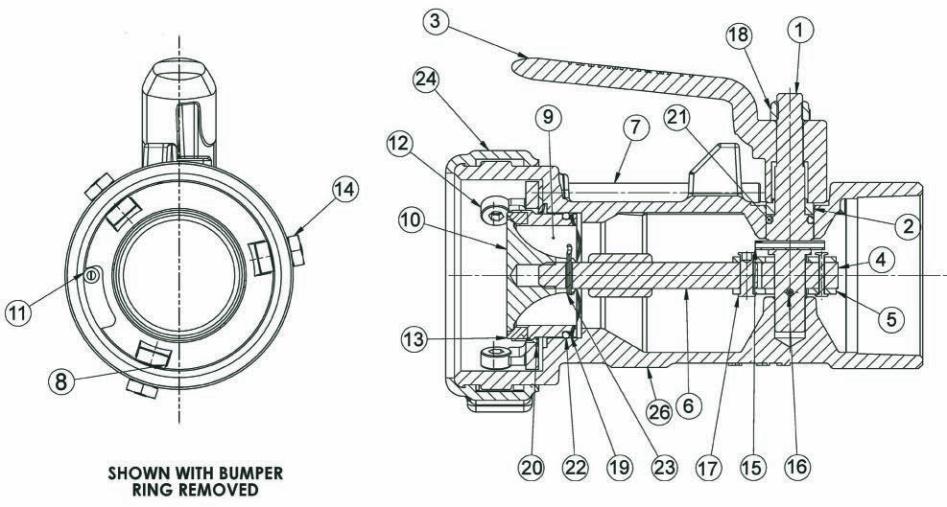

Bill of Materials
BC6x-200
Dry Disconnect Bayonet Style Couplers
2" Straight Non-Swiveling Couplers
Item # Description Part # Qty
1 lever shaft 40138SS 1
2 lever shaft follower 40139SS 1
3 lever 40140SS 1
4 poppet link arm 40141SS 1
5 bent link 40142SS 2
6 stem 40143SS 1
7 interlocking pin 40144SS 1
8 lock ring 40145SS 1
9 nose piece 40146HC 1
10 poppet 40147CA 1
11 coiled pin 40148SS 1
12 bayonet stud 40149SS 3
13A nose seal Buna (for BC61-200) 40150BN 1
13B nose seal Viton® (for BC62-200) 40150VI 1
14 jam nut 40151SS 3
15 spring pin 40152SS 1
16 coiled pin 40153SS 1
17 rivet 40154SS 2
18 lock nut 40155SS 1
19 wave spring 40159SS 2
20 wave spring washer 40160SS 1
21A shaft O-ring Buna (for BC61-200) 40162BN 1
21B shaft O-ring Viton® (for BC62-200) 40162VI 1
22A poppet O-ring Buna (for BC61-200) 40163BN 1
22B poppet O-ring Viton® (for BC62-200) 40163VI 1
23 cotter pin 40164SS 1
24 bumber ring 40166VY 1
25 label 40167AL 1
26 body -- 1
Product instruction sheets and technical data can be viewed on our website at
dixonbayco.com by selecting the "Resources" menu
