Caps & Plugs
G
Caps &Plugs

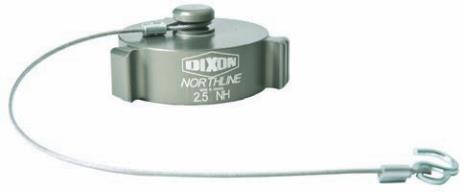

Aluminum Caps with Cable
Rocker Lug
Long Handle
cap with rocker lug
cap with long handle
Thread
NPSH Part # Dixon Northline Part #
1"
1½"
2"
2½"
2½"
AFC100
AFC150
AFC200
AFC250
AFC250___ *
CAP100S-C
CAP150S-C
CAP200S-C
CAP250S-C
CAP250_-C
•material: extruded hardcoated aluminum
•Other configurations are available. Consult the factory for
pricing and availability. Not all configurations are stocked.
•use aircraft cable (coated)
Thread
NH (NST) Part # Dixon Northline Part #
1"
1½"
2"
2½"
3"
4"
4½"
5"
6"
AFC100F
AFC150F
AFC200F
AFC250F
AFC300F
AFC400F
AFC450F
AFC500F
AFC600F
CAP100F-C
CAP150F-C
CAP200F-C
CAP250F-C
CAP300F-C
CAP400F-C
CAP450F-C
CAP500F-C
CAP600F-C
•material: extruded hardcoated aluminum
Thread
NH (NST) Part # Wt.
Lbs.
4"
4½"
6"
ALHC400F
ALHC450F
ALHC600F
2.72
3.00
3.62
* customer required threads
Size Thread Part # Wt.
Lbs.
1½"
2½"
1½"
2½"
NPSH
NPSH
NST
NST
F-AFC150
F-AFC250
F-AFC150F
F-AFC250F
0.15
0.25
0.50
0.70
Note: forged caps not available with customer threads.
•forged aluminum
