46 Dixon Fire 2012 US: 877.712.6179 Canada: 800.786.9697
Connections
C
Connections
FDC Pump Connections and Hose Valve Headers
Pump Test Header
Manifolds
Model Number
Breakdown
HVG0402-25
End Size
# of OutletsSize Outlets
End Connection
Pump Test Header
Manifolds
Model Number
Breakdown
T98060-30
End Size
# of OutletsSize Outlets
Location
End Connection

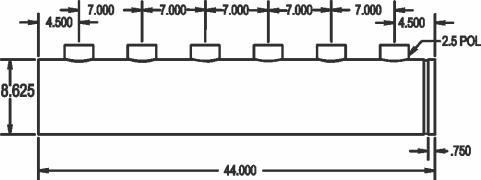

Dimensions
End Connection End Size # of Outlets Size Outlets GPM
G
F
---
---
Grooved
Flanged
---
---
04
06
08
10
4"
6"
8"
10
02
03
04
06
2 way
3 way
4 way
6 way
25
30
---
---
2½" FNPT
3" FNPT
---
---
4" 2-way
6" 3-way
8" 4-way
10" 6-way
500
750
1000
1500
Dimensions
Dixon Powhatan offers grooved, flanged and threaded steel bodies for the fire protection
market. The samples below represent common configurations, however custom assemblies
are available. Please consult our customer service department to order (877.712.6179). We
will ask you for the following:
1. Outlets - number, size thread
2. Inlets - configuration, size, thread (if applicable), location (end, back, angle)
3. Material - galvanized steel, stainless steel
4. Finish - epoxy paint, powder coat, color
•certified D1, G1, G6
End Connection Location End Size # of Outlets Outlet Size
T
G
F
Threaded
Grooved
Flanged
E
B
9
End
Back
90°
40
60
80
4"
6"
8"
20
30
40
60
2
3
4
6
25
30
2½" FNPT
3" FNPT
