Dixon FIre 2012
US: 877.712.6179 Canada: 800.786.9697
Aluminum Valves & Wyes
B
Aluminum
Valves &
Wyes

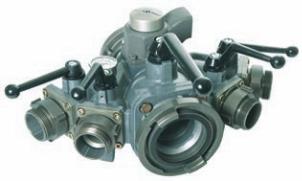

Dixon Northline Aluminum 5-Way Manifolds
Dixon Northline Aluminum Butterfly Valves
This valve is made from lightweight aluminum alloy and is hard anodized for a longer life span.
It can be used to supply multiple attack lines with one large diameter line. The compact unit
contains one large gated outlet, four 2½" gated outlets, pressure gauge, adjustable relief valve,
and carrying handle built into the body. It is available with Storz fittings, male or female threads.
•
425 PSI
test pressure,
280 PSI
working pressure without relief valve,
750 PSI
minimum burst pressure
•
water way: inlet side- 4½" maximum, 1 outlet - 4½" maximum, 4 outlets - 2½" maximum
•
body of valve: high strength aluminum alloy, 356-T6
•
finish hardcoat anodized throughout: minimum thickness 0.001"
•
pressure gauge: March instruments Mfg., glycerine filled, PSI/KPA readings
•
relief valve: double spring, cartridge type, adjustable from 50 to 200 PSI
Inlet
Storz
(1) Outlet
Storz
(4) Outlet
Gated
Part #
Length Width Height
Wt.
Lbs.
4"
4"
2½"
MSMG425___ *
21
25 12.5 46.5
5"
5"
2½"
MSMG525___ *
21
25 12.5 50.0
6"
6"
2½"
MSMG625___ *
21
25 12.5 54.0
Note: all measurements include handles
* customer to specify threads required
This valve is made from lightweight aluminum flanges that are hard anodized to provide a
longer life span. It permits safe controlled flow to the intake pump and can be used for draft
situations. The body wafer is lightweight aluminum cast 356-T6 with standard 10 position lever
handle. It comes furnished with a ¾" push-pull drain valve. Available with female, male threads
or storz connections.
•
Up to
150-300 PSI
working pressure
•
water way: 4½", 5", and 6" maximum
•
body of valve: ASTN A-126 cast iron with standard 10-position locking style lever, ¾" push-
pull drain valve, seat-buna
•
finish hardcoat anodized cast aluminum bolt flanges - minimum thickness 0.001"
Male
Female
Swivel
Part #
Length Width Height
Wt.
Lbs.
4"
4"
FMBTFLY40___40___ *
9.5
11.0
18.0 35.0
4"
4½"
FMBTFLY40___45___ *
9.5
11.0
18.0 35.0
4"
5"
FMBTFLY40___50___ *
9.5
11.0
18.0 35.0
4"
6"
FMBTFLY40___60___ *
9.5
11.0
18.0 35.0
4½"
4"
FMBTFLY45___40___*
9.5
11.0
18.0 40.0
4½"
4½"
FMBTFLY45___45___*
9.5
11.0
18.0 40.0
4½"
5"
FMBTFLY45___50___*
9.5
11.0
18.0 40.0
4½"
6"
FMBTFLY45___60___*
9.5
11.0
18.0 40.0
5
4"
FMBTFLY50___40___*
9.5
11.0
18.0 45.0
5
4½"
FMBTFLY50___45___*
9.5
11.0
18.0 45.0
5
5"
FMBTFLY50___50___*
9.5
11.0
18.0 45.0
5
6"
FMBTFLY50___60___*
9.5
11.0
18.0 45.0
6
6"
FMBTFLY60___60___*
9.5
13.0
18.0 45.0
Note: Lever handle to center valve is 10¼". This unit can be used in either direction i.e.: inlet/outlet.
* customer to specify threads required
Butterfly Valves - Male x Female Swivel
Storz x Storz x (4) gated
male x female swivel
