BrassValves& Wyes Single Hydrant Gate Valves with Hand Wheel
female NH x male NH
female NH x male thread

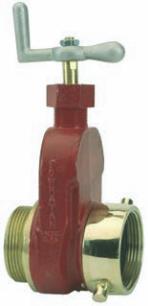

Single Hydrant Gate Valves with Speed Handle
The hydrant gate valve is used to throttle the flow from a fire hydrant without damaging the
hydrant itself.
•material: cast red brass
•O-ring seal
•U/L listed
•for use on standpipes and fire pumps where U/L listing is required
•for use up to 175 PSI (water only)
Inlet
Female
Outlet
Male Part # Wt.
Lbs.
2½" NH (NST)
2½" CT 1
2½" NH (NST)
2½" CT 1
UHGV250F
UHGV250___ *
9
9
Description Part # Wt.
Lbs.
hand wheel UHGV250-W .25
Replacement Part
1Customer Thread
* customer to specify thread
The primary purpose of a single hydrant gate valve is to protect fire hydrants from damage that
can occur if they are used for throttling.
•pin lug swivel, non-rising stem, aluminum speed handle
•material: cast brass
•rubber seal
•for use on hydrants, standpipes, and fire pumps
•for use up to 175 PSI (water only)
Inlet
Female
Outlet
Male Part # Wt.
Lbs.
2½" NH (NST)
2½" NH (NST)
2½" NH (NST)
2½" CT 1
2½" NH (NST)
2½" NH (NST)
2½" NPSH
2½" CT 1
HGV250F
HGV250F-D
HGV250
HGV250___ *
8.8
8.8
8.6
Description Part # Wt.
Lbs.
speed handle HGV250-H .20
Replacement Part
1Customer Thread
* customer to specify thread
