Brass Valves & Wyes A
BrassValves& Wyes
19-280

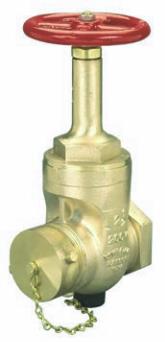

Wedge Disc Gate Valves - Rising Stem
Wedge Disc Gate Valves - Non-rising Stem
B
C
D
A
female NPT x male NH
19-280
female NPT x male NH
•material: forged brass, satin finish
•red handwheel
•solid wedge disc with tapered seats
•straightway pattern
•U/L listed and FM approved
•working pressure: 300 PSI
•for use on standpipes, fire pumps and hydrants
Inlet
Female NPT
Outlet
Male NH (NST) Part # Wt.
Lbs.
2½"
3"
2½"
2½"
WDGV251F
WDGV3025F
8.8
9.3
Size A B
closed C D
closed
D
open
2½"
3" x 2½"
6-1/2"
6-3/16"
11
11
2-1/2"
2-1/2"
13-1/2"
13-1/2"
16-1/4"
16-1/4"
Dimensions
Not recommended for wet standpipe systems. Use AV250 (18-157) for this
purpose, see page 10.
•material: cast brass
•red iron wheel handle, with brass cap and chain
•solid wedge disc with tapered seats
•working pressure: see chart below
1Customer Thread
*customer to specify thread
2 U/L listed
Inlet
Female NPT
Outlet
Male
WP
PSI Part # Powhatan
Part #
Wt.
Lbs.
2½"
2½"
3"
3"
2½" NH (NST)
2½" CT 1
2½" NH (NST)
2½" CT 1
200
300
RWDGV250F
RWDGV250___ *
RWDGV3025F 2
RWDGV3025___ *
19-280-50000
---
19-280-50001
---
19.0
19.0
20.3
20.0
