Specialties

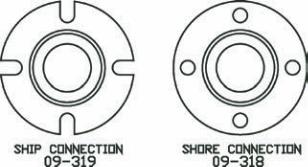

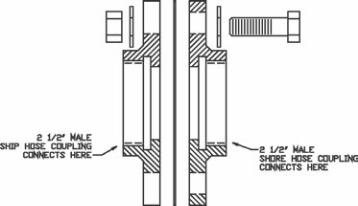

Brass International Shore Connections
•meets U.S. Coast Guard specifications for vessels 1000 gross tons or more
•makes possible the connection of two different threads between ship and shore or between ships
•7" OD brass flange with 4¾" holes
•solid wedge disc with tapered seats
•includes 8 washers, 4 hexagon brass nuts, 4 hex head bolts, 1 washer, 1 fiber gasket
•working pressure: 300 PSI
Description Powhatan
Part #
Wt.
Lbs.
shore side
ship side
09-318-00001
09-319-00001
7.38
7.14
Replacement Brass Swivel & Accessories
•2½" and 3" replacement brass swivels for Dixon Powhatan FDC
•finish: -P polished, -C polished chrome plated
Size Thread Part # Wt.
Lbs.
2½"
NPSH (2.84x8) PSNP250S 1.3
NST (3.07x7.5) PSNP250NST 1.3
NYC/BA (3.00x8) PSNP250NYC 1.3
NYFD (3.03x8) PSNP250NYFD 1.3
CSA (3.125x5) PSNP2503.125x5 1.3
QST (3.031x7) PSNP2503.03x7 1.3
WCT (3.25x6) PSNP2503.25x6 1.3
PITT 6 (3.06X6) PSNP2503.06x6 1.3
2½" CT 1 PSNP250___ * 1.3
3" NST PSNP300NST 2.0
NYFD PSNP300NYFD 2.0
Description Part #
2½" gasket SW250F
3" gasket SW300F
ball bearings 46-003-00001 *
set screw 46-011-00418
* 2½" requires 50 ball bearings, 3" requires 58 ball bearings
Replacement Part
* customer to specify thread
1Customer Thread
brass swivel
