Brass Valves & Wyes A
BrassValves& Wyes Brass Straight Globe Valves
18-217

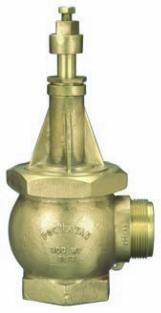

Wharf Hydrants
18-251
female NPT x male NH
female NPT x male NH
Inlet
Female
NPT
Outlet
Male NH
(NST)
Height
Open
Height
Closed Part # Powhatan
Part #
Wt.
Lbs.
3"
4"
4"
2½"
2½"
4½"
16.38
16.38
18.13
14.25
14.25
15.63
WHYD3025F
WHYD4025F
WHYD4045F
18-251-00008
18-251-00015
18-251-00017
31
23
41
•used to provide a fire department outlet connection
•pentagon nut at top of spindle discourages unauthorized use
•material: cast brass
•for use up to 300 PSI
Description Part #
hand wheel 46-030-00025
Replacement Part
•ideal for wet and combination systems
•used with a fire hose rack assembly, or as a fire department outlet connection
•material: cast brass with an aluminum handwheel
•for use up to 300 PSI
Inlet
Female
Outlet
Male Part # Powhatan
Part #
Wt.
Lbs.
1½" NPT
1½" CT 1
2½" NPT
2½" CT 1
1½" NH (NST)
1½" CT 1
2½" NH (NST)
2½" CT 1
SGV150F
SGV150___ *
SGV250F
SGV250___ *
18-217-00010
---
18-217-00083
---
6.0
6.0
9.6
9.6
Inlet
Female NPT
Outlet
Female NPT Part # Powhatan
Part #
Wt.
Lbs.
1½"
2½"
1½"
2½"
SGVF150
SGVF250
18-217-00104
18-217-00082
6
8
Size A B C
(closed)
D
(open)
Wt.
Lbs.
1½" 2-3/8" 4-3/4" 7-1/4" 8" 5.0
2½" 3-9/32" 6-9/16" 7-3/8" 8-1/8" 9.3
Dimensions
* customer to specify thread
1Customer Thread
