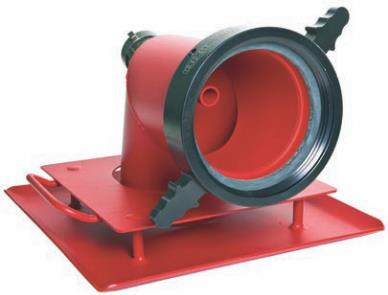

Dixon Northline 6" Low Level Strainer with Siphon Jet
The 6" Low Level Strainer with Siphon Jet can be used as a
low level strainer and as a water transfer device. This strainer
is made of lightweight aluminum alloys that are both anodized
and powder coated. The pivoting elbow enables the base
to sit flat on the bottom of a portable tank. This unit allows
the user to draft within 2" of the bottom of the tank without
whirlpooling. For fast fill flowing, the jet is constructed from
¾" pipe, supplied with 304 stainless steel mesh strainer. Also,
complete with 1½" Male NPSH plug with wire cable attached
to base.
Specifications
Features & Benefits
• Base: 1/8" thick 5052 H32 Marine Grade Aluminum, powder coated red with 45° angled edges, carrying handle mounted to
base
• Elbow: 6" aluminum Tube 6061-T6, powder coated red
• Posts: welded between upper and lower base, 6061-T6 Aluminum
• Siphon Jet: ¾" ID Aluminum pipe, 6061-T6 Aluminum, powder coated red
• Elbow Pivot Rod: ¼" thick, stainless steel 304 grade
• Washers: polypropylene used for ease of elbow pivot and longer wear
• Pivot Bracket: 3/16" thick x 1½" x 1½", Angle 6061-T6 Aluminum
• 6" Swivel: long handle, black anodized, 6061-T6 Aluminum
Size Part #
with Jet Siphon
Part #
without Jet Siphon
2½"
3"
4"
4½"
5"
6"
NCS-LLSJ-25___ *
NCS-LLSJ-30F
NCS-LLSJ-40F
NCS-LLSJ-45F
NCS-LLSJ-50F
NCS-LLSJ-60F
NCS-LL-25___ *
NCS-LL-30F
NCS-LL-40F
NCS-LL-45F
NCS-LL-50F
NCS-LL-60F
Low Level Strainers - Threaded Female Swivel with and without Jet Siphon
Size Part #
with Jet Siphon
Part #
without Jet Siphon
2½"
3"
4"
5"
6"
NCS-LLSJ-25SZ
NCS-LLSJ-30SZ
NCS-LLSJ-40SZ
NCS-LLSJ-50SZ
NCS-LLSJ-60SZ
NCS-LL-25SZ
NCS-LL-30SZ
NCS-LL-40SZ
NCS-LL-50SZ
NCS-LL-60SZ
Low Level Strainers - Storz Adapter with and without Jet Siphon
* customer thread
