¼ Turn Forged Forestry Couplings
Aluminum Forestry Hose Expansion Ring Rocker Lug Couplings
• forged aluminum
•common quarter turn sexless head design (1½" QT fitting will mate with 1" QT or ¾" QT)
•for use up to 300 PSI
Size Female
Thread Part # Wt.
Lbs.
¾"
1"
1"
1½"
1½"
GHT
NPS
NPT
NH (NST)
NPT
QTF75GHT-F
QTF100S-F
QTF100T-F
QTF150F-F
QTF150T-F
.20
.30
.50
.31
.60
Size Male
Thread Part # Wt.
Lbs.
¾"
1"
1"
1½"
1½"
GHT
NPS
NPT
NH (NST)
NPT
QTM75GHT-F
QTM100S-F
QTM100T-F
QTM150F-F
QTM150T-F
.20
.17
.30
.20
.60
Special tooling is required to attach these couplings to hose.
All couplings come with expansion rings, a swivel washer and
tail washers.
For expansion ring coupling machines see page 123
•lugs on female only
•working pressure 270 PSI
•for females or males only, consult the factory for pricing and availability
* Under no circumstances should the fittings be used beyond the working pressure of
the hose.
Note: Assembled hose should be hydrostatically proof tested before use, and thereafter in
accordance with NFPA 1962.
Hose Size Bowl Size Thread Type Part #
1"
1"
1½"
1½"
1-3/16"
1¼"
1-13/16"
2-11/16"
NPSH
NPSH
NH (NST)
NH (NST)
EF11118
EF11125
EF16168F
EF16175F

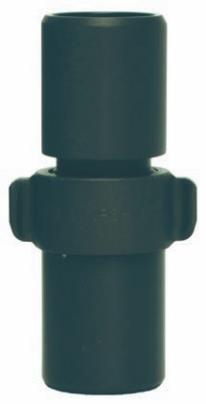

forestry female coupling
forestry male coupling
female x female
