Hose Couplings
L
HoseCouplings
Global Type A Adapters
Global Cam and Groove
Global Type E Adapters
Global Type F Adapters
•designed to interchange with all products produced to
MIL-C-27487F
•made to Dixon specifications and branded Dixon
•Buna seals are standard in all couplers
•Pressure rating for adapters, is based on the seal of the
mating part.
• Dust caps and dust plugs are not to be used in pressure
applications for safety and environmental reasons
Size A380 Aluminum
Part #
ASTMC38000 Forged Brass
Part #
½"
¾"
1"
1¼"
1½"
2"
2½"
3"
4"
5"
6"
G50-A-AL
G75-A-AL
G100-A-AL
G125-A-AL
G150-A-AL
G200-A-AL
G250-A-AL
G300-A-AL
G400-A-AL
G500-A-AL
G600-A-AL
G50-A-BR
G75-A-BR
G100-A-BR
G125-A-BR
G150-A-BR
G200-A-BR
G250-A-BR
G300-A-BR
G400-A-BR
---
---
Size A380 Aluminum
Part #
ASTMC38000 Forged Brass
Part #
½"
¾"
1"
1¼"
1½"
2"
2½"
3"
4"
5"
6"
8"
G50-E-AL
G75-E-AL
G100-E-AL
G125-E-AL
G150-E-AL
G200-E-AL
G250-E-AL
G300-E-AL
G400-E-AL
G500-E-AL
G600-E-AL
G800-E-AL
G50-E-BR
G75-E-BR
G100-E-BR
G125-E-BR
G150-E-BR
G200-E-BR
G250-E-BR
G300-E-BR
G400-E-BR
---
---
---
Size A380 Aluminum
Part #
ASTMC38000 Forged Brass
Part #
½"
¾"
1"
1¼"
1½"
2"
2½"
3"
4"
5"
6"
G50-F-AL
G75-F-AL
G100-F-AL
G125-F-AL
G150-F-AL
G200-F-AL
G250-F-AL
G300-F-AL
G400-F-AL
G500-F-AL
G600-F-AL
G50-F-BR
G75-F-BR
G100-F-BR
G125-F-BR
G150-F-BR
G200-F-BR
G250-F-BR
G300-F-BR
G400-F-BR
---
---
female NPT x male adapter

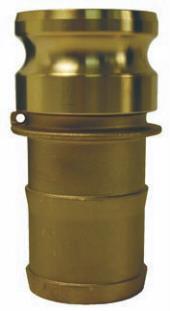

hose shank x male adapter
male NPT x male adapter
