Hose Couplings
L
Hose
Couplings

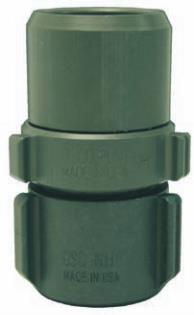

Aluminum Expansion Ring Rocker Lug Couplings
•
special tooling is required to attach these couplings to hose
•
hardcoated finish
•
all couplings come complete with expansion rings, swivel and tail washers
•
3 rocker lugs on male and female
Couplings for Single Jacket Hose
Couplings for Double Jacket Hose
rocker lug
expansion ring coupling
rocker lug
expansion ring coupling
Consult the factory for pricing and availability for any of the following features:
•
other sizes and threads
•
females or males only
Hose
Size
Thread
Type
Bowl
Part #
Wt.
Lbs.
1½"
1½"
1½"
2"
2½"
2½"
2½"
1½"
1½"
1½"
2"
2½"
2½"
2½"
1½"
1½"
2"
2½"
NPSH
NPSH
NPSH
NPSH
NPSH
NPSH
NPSH
NH (NST)
NH (NST)
NH (NST)
NH (NST)
NH (NST)
NH (NST)
NH (NST)
MNPT *
MNPT *
MNPT *
MNPT *
1-11/16"
1-3/4"
1-13/16"
2¼"
2-11/16"
2-3/4"
2-13/16"
1-11/16"
1-3/4"
1-13/16"
2¼"
2-11/16"
2-3/4"
2-13/16"
1-11/16"
1¾"
2¼"
2-11/16"
S16168
S16175
S16181
S20225
S26268
S26275
S26281
S16168F
S16175F
S16181F
S20225F
S26268F
S26275F
S26281F
MS16168T
MS16175T
MS20225T
MS26268T
0.94
0.74
0.76
1.56
1.87
1.99
1.95
1.00
0.74
0.95
1.56
1.78
1.90
2.04
0.30
0.35
0.65
0.65
Hose
Size
Thread
Type
Bowl
Part #
Wt.
Lbs.
1½"
1½"
1½"
2½"
1½"
1½"
1½"
2½"
2½"
1½"
2"
2½"
NPSH
NPSH
NPSH
NPSH
NH (NST)
NH (NST)
NH (NST)
NH (NST)
NH (NST)
MNPT *
MNPT *
MNPT *
1-7/8"
1-15/16"
2-1/16"
3"
1-7/8"
1-15/16"
2-1/16"
2-7/8"
3"
1-13/16"
2-5/16"
2-7/8"
D16187
D16193
D16206
D263
D16187F
D16193F
D16206F
D26287F
D263F
MD16181T
MD20231T
MD26287T
0.72
0.76
0.76
1.06
0.80
1.07
0.76
2.05
2.17
0.40
0.35
0.70
* MNPT sold as single couplings
* MNPT sold as single couplings
