123 Dixon Fire 2012 US: 877.712.6179 Canada: 800.786.9697
Hose Couplings
L
Hose Couplings
Style Brute Expanders
Expansion Unit Assemblies
X-Pander
Compact Hand Pump
Size Part # Wt.
Lbs.
1½"
1½" rack
2½" (Storz also)
16154
16101-RH
16171
4.51
7.30
7.30
Part # Wt.
Lbs.
BruteXpand 45
•Designed for forestry service, fire departments, small distributors and ski areas.
•All-in-one design means fewer parts and no hydraulic connections making the X-Pander
reliable and service free.
•may be used to attached 1" thru 3" couplings
•ideal for in-house use or mounted in a service van for field repairs
•size: 13" wide x 17" deep x 10" high
Brute expanders do not include any expansion unit assemblies. They must be
ordered separately, expansion unit assemblies.
•designed for hose manufacturers and higher volume
•may be used to attach 1" thru 6" couplings
•3,000 lb pump, 2,500 lb. workable
•3,450 RPM, 1½ horsepower, single phase, 220 volt motor
•cylinder has 6" stroke, 4" bore, and 38,000 lbs of total thrust
•oil capacity: 9 gallons
•manually set external pressure relief valve
•size: 22" wide x 22" deep x 16" high
Part # Wt.
Lbs.

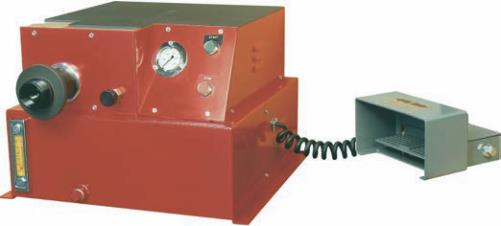

Brute2 400
Model 2
Bench Model Electric/Hydraulic
expansion unit
X-Pander
model 2
