Page 122 - Dixon Fire 2012_wm

120 Dixon Fire 2012 US: 877.712.6179 Canada: 800.786.9697
Suction Hose and Accessories
K
SuctionHose &Accessories

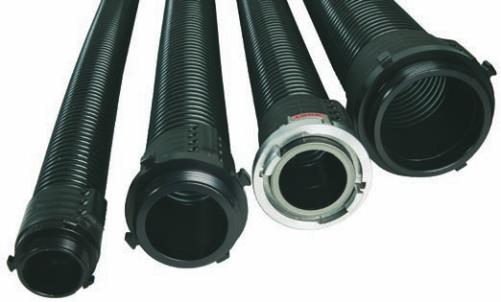

Dixon Northline PVC Flexible Suction Hose
Features & Benefits
Hose
• Flexible PVC and lightweight for ease of operation
• Black helix design for easier maintenance and UV protection
• Clear PVC provides a view of water flow and assists in obtaining prime
Hose Collars
• High performance injection molded polymer design ensures a 360° seal
• High-tech polymer material offers durability and reduces overall hose weight up to 12%
• Flexible design allows quick and easy in field serviceability with ¼" socket wrench
Hose Ends
• 6061-T6 lightweight structural aluminum extruded components for maximum strength and durability
• Black anodized for protection against corrosion and laser engraved
• Roller "disc" bearings for maximum performance and sheer strength
Dixon Northline has developed the industry's lightest
flexible suction hose. The suction hose design incorporates
engineered polymers and extruded aluminum parts to
maximize strength, durability and performance.
Construction
Applications : designed for drafting use only
Maximum Operating Pressure: 35 PSI
Specifications
Sizes - 2½", 3", 4", 4½", 5" and 6" standard smaller and larger
diameters available upon request
Lengths - 10' standard length shorter and longer lengths
available upon request
Couplings - NST, CamLock, Storz, and special threads
Options
Dixon Northline Lightweight PVC Flexible Suction Hose is top quality hose supplied by Goodyear. The suction hose sizes
range from 2½" to 6". Our aluminum couplings are made from extruded 6061-T6 lightweight aluminum alloy. Threaded
couplings are finished black anodized and laser engraved with a clear understanding of the thread type and size being provided.
All swivels are attached using roller bearings and are supplied as long handle or rocker lug style.
With the most advanced collar attachment in the industry, Dixon Northline's Suction Hose is far superior to others in the
industry. The collar is made from durable lightweight plastic, molded four inches wide. With the length of the shank on the
coupling, inserted into the hose and the width of the collar combined, the chance of leakage is minimal when the hose is flexed
while in use.
