Adapters

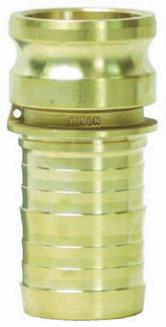

Dixon / Boss-Lock Type E Adapters
1 Dixon and Boss-Lock cam and groove couplings do not interchange in the 8" size.
Size
356T6
Aluminum
Part #
Aluminum
Hard Coat
Part #
Brass
Part #
Unplated
Iron
Part #
Plated Iron
Part #
316 SS
Part #
½"
¾" x½"
¾"
1"
1¼"
1½"
2"
2½"
3"
4"
5"
6"
8" DIX
8" BL
50-E-AL
7550-E-AL
75-E-AL
100-E-AL
125-E-AL
150-E-AL
200-E-AL
250-E-AL
300-E-AL
400-E-AL
500-E-AL
600-E-AL
800-E-AL 1
801-E-AL 1
---
---
---
---
---
150-E-ALH
200-E-ALH
---
300-E-ALH
400-E-ALH
---
600-E-ALH
---
---
50-E-BR
---
75-E-BR
100-E-BR
125-E-BR
150-E-BR
200-E-BR
250-E-BR
300-E-BR
400-E-BR
---
600-E-BR
---
---
---
---
---
---
---
150-E-MI
200-E-MI
---
300-E-MI
400-E-MI
---
---
---
---
---
---
75-E-PM
100-E-PM
125-E-PM
150-E-PM
200-E-PM
---
300-E-PM
400-E-PM
---
600-E-PM
---
---
50-E-SS
7550-E-SS
75-E-SS
100-E-SS
125-E-SS
150-E-SS
200-E-SS
250-E-SS
300-E-SS
400-E-SS
500-E-SS
600-E-SS
---
---
male adapter x hose shank
brass
Size ½" ¾" x½" ¾" 1" 1¼" 1½" 2" 2½" 3" 4" 5" 6" 8"
DIX
8"
BL
A overall length 2½ 2¾ 3-15/16 4-5/8 4-7/8 5-1/16 6-1/32 6¼ 6-29/32 7-3/16 7-5/32 9-5/32 11-13/16 11¼
B hose shank length 1-7/16 1-5/16 2-3/8 2-15/16 2-13/16 2-29/32 3-3/8 3¾ 4-7/32 4¼ 4¼ 6-1/32 8 8
C hose shank OD 9/16 19/32 27/32 1-1/16 1-11/32 1-9/16 2-1/16 2-5/8 3-3/32 4-3/32 5-3/32 6-1/16 8-1/16 8-1/16
3576T6 aluminum, brass and iron dimensions
Size ½" ¾" x½" ¾" 1" 1¼" 1½" 2" 2½" 3" 4" 5" 6" 8"
DIX
8"
BL
A overall length 2-7/16 2¾ 3-15/32 4-11/16 4-7/8 4-31/32 5¾ 6¼ 6-7/8 6-7/8 7 11/64 9-29/32 --- ---
B hose shank length 1¾ 15/16 2-3/8 2-15/16 4-7/8 2-29/32 3-3/8 3¾ 4-3/16 4¼ 4¼ 6-3/32 --- ---
C hose shank OD 9/16 19/32 1-5/16 1-1/16 1-11/32 1-9/16 2-1/16 2-5/8 3-3/32 4-3/32 5-3/32 6-1/16 --- ---
316 stainless steel dimensions
