General Information
Cam and Groove
Line Drawings

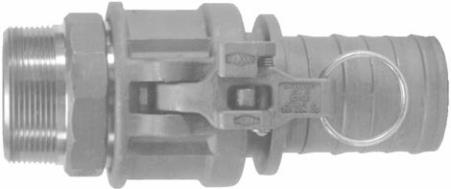

EZ Boss-Lock
No more fumbling with clamps, wire, clips or pins.
Just close the handles and the locking
mechanism is engaged.
Unlike other safety couplings . . .
•
The EZ Boss-Lock is extremely easy to open!!!
The release lever is under your thumb when you want to open
the fitting. Ergonomic.
•
The EZ Boss-Lock is resistant to accidental disconnection
when being dragged.
The release lever opens in the direction
opposite to the cam arm, so movements that tend to open the
release lever also tend to close the cam arm!!!
•
The EZ Boss-Lock alerts you if it is not properly engaged.
If the rotating lever is not flush with the handle, it is not
properly engaged.
•
The EZ Boss-Lock has no sliding pins to jam.
The EZ Boss-Lock’s rotating action helps keep the locking
device free of debris.
•
The EZ Boss-Lock has no sliding pins to pop open.
The EZ Boss-Lock is designed to protect critical parts from
impact and to withstand rugged use.
•
The EZ Boss-Lock can be supplied with special shanks
custom suited to your needs.
The EZ Boss-Lock is available
with swaged and PF shank designs for hard to couple
chemical hoses.
•
The EZ Boss-Lock cam arm assemblies are made of
investment cast stainless steel with plated carbon steel pull
rings.
•
The EZ Boss-Lock is easier to insert into the hose tubes on
tank trucks, and easier to use in restricted spaces.
This is due to the smaller maximum OD and a more snag free
exterior.
•
The EZ Boss-Lock cam arm assemblies can be retrofitted onto
undamaged stainless steel Boss-Lock.
This allows you to
protect your investment in stainless steel Boss-Lock couplings
while you upgrade.
•
The EZ Boss-Lock is made in the USA.
Type A
male adapter x female NPT
Type E
male adapter x hose shank
Type B
female coupler x male NPT
Type F
male adapter x male NPT
Type C
female coupler x hose shank
Type DC
*
dust cap
Type D
female coupler x female NPT
Type DP
*
dust plug
Warning !
Under no circumstances
should cam and groove
couplings be used for compressed air or steam service
!
Line drawings are
representative of the Dixon
line of cam and groove.
* Dust caps and dust plugs are
not
to be used in
pressure applications for safety and environmental
reasons.
