48 Dixon 877.963.4966 ♦ dixonvalve.com
Accessories
Clip for Boss-Lock Couplings
Carbon Steel Clip Assembly
Jack Chains with S-Hooks
Sash Chains with Pull Rings
PVC Coated Lanyards

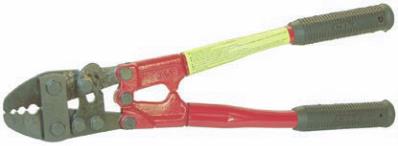

Hand Swager with Cutter
Part #
BLCA152CS
•for use with Boss-Lock couplings
•includes a pull ring, chain and AC3 clip
Part #
22-ST14C
• for 1/16", 3/32" and 1/8" wire rope
•designed for crimping aluminum oval sleeves
•jaws are made of forged alloy steel
•provides a clean, sharp cut on wire rope
•brass chain, plated steel pull ring
Length Part #
4½"
6½"
8½"
12¾"
J125
J150
J300
J500
• PVC coated carbon steel with aluminum crimp sleeves
•one end factory crimped, one end uncrimped for field
installation
Length Part #
15"
25"
CAL15
CAL25
Length Material Part # Opt
Qty
6"
12"
24"
12"
6"
12"
24"
brass
brass
brass
carbon steel
stainless
stainless
stainless
CH-B-6
CH-B-12
CH-B-24
CH-C-12
CH-SS-6
CH-SS-12
CH-SS-24
10
10
--
10
10
10
10
304 Stainless
Part #
LR7
• breaking strength: 160 lbs.
• overall length: 7" eye to eye
Stainless Steel
Part #
AC7
• .072 stainless steel wire
Lanyard for Boss-Lock Couplings
