18
Dixon
877.963.4966
♦
dixonvalve.com
Couplers
EZ Boss-Lock Type B Couplers
Size
356T6
Aluminum
Part #
Brass
Part #
316 SS
Part #
¾" x½"
¾"
1"
1¼"
1½"
2"
3"
4"
6"
---
---
AB100EZ
---
AB150EZ
AB200EZ
AB300EZ
AB400EZ
---
---
BB075EZ
BB100EZ
BB125EZ
BB150EZ
BB200EZ
BB300EZ
BB400EZ
---
RB050EZ
RB075EZ
RB100EZ
RB125EZ
RB150EZ
RB200EZ
RB300EZ
RB400EZ
RB600EZ
female coupler x male NPT
aluminum
Size
¾" x ½"
¾"
1"
1¼"
1½"
2"
2½"
3"
4"
5"
6"
8"

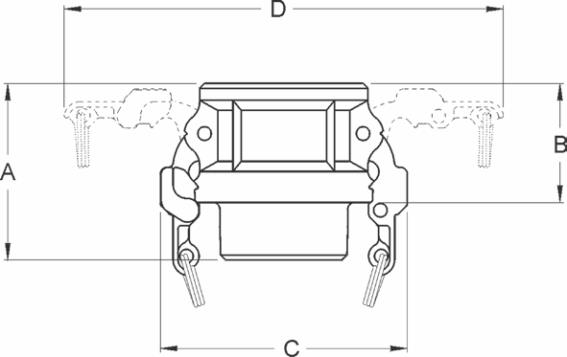

A overall length
---
2-5/16 2-17/32 3-5/32 3-5/32 3-9/32
---
4
4-1/16
---
4-23/32
---
B coupler length
---
1-13/32 1-17/32 1-29/32 1-29/32 2-7/32
---
2-5/16 2-5/16
---
2-19/32
---
C distance across closed cam arms ---
3-3/32
3¼
3-29/32 4-7/32 4-19/32
---
5-23/32 6-27/32
---
10
---
D distance across open cam arms
---
6-7/32 6-11/32 7-15/32 7-25/32 8-5/32
---
9-29/32
11
---
16-25/32
---
3576T6 aluminum, brass and iron dimensions
Size
¾" x ½"
¾"
1"
1¼"
1½"
2"
2½"
3"
4"
5"
6"
8"
A overall length
2¼
2¼
2-9/16 3-3/16 3-7/32
3¼
---
3-15/16 4-1/16
---
4-17/32
---
B adapter length
1-5/16 1-5/16 1-9/16 1-29/32 1-29/32 2-3/16
---
2-5/16 2-5/16
---
2-19/32
---
C distance across closed cam arms 3-3/32 3-3/32
3¼
3-29/32 4-7/32 4-19/32
---
5-23/32 6-27/32
---
10
---
D distance across open cam arms 6-7/32 6-7/32 6-11/32 7-15/32 7-25/32 8-5/32
---
9-29/32
11
---
16-25/32
---
316 stainless steel dimensions
